Same model may have multiple batches, images only for reference.

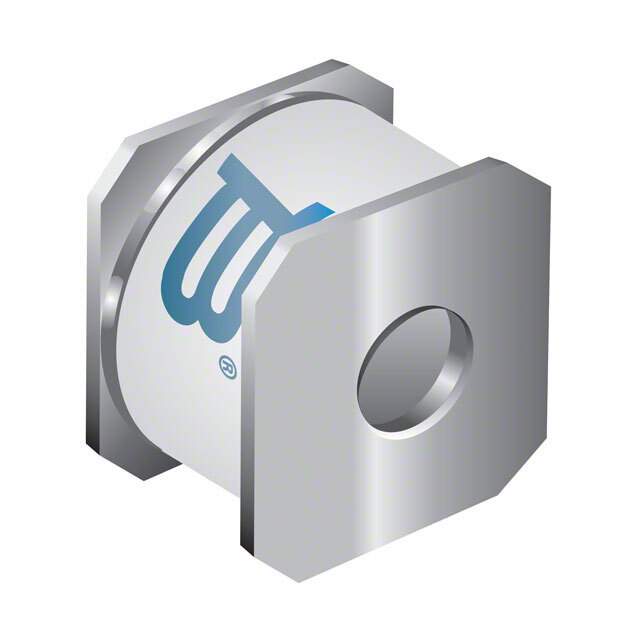

2055-30-SM-RPLF Real Image
Same model may have multiple batches, images only for reference.

2055-30-SM-RPLF

Part No 2055-30-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 300V 2.5KA 2 POLE SMD / Gas Discharge Tube 300 V 2500A (2.5kA) ±20% 2 Pole Surface Mount
Datasheet
2055-30-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series 2055-SM
Package Tape & Reel
Voltage - DC Spark Over (Nom) 300 V
Impulse Discharge Current (8/20µs) 2500A (2.5kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting SMD (SMT)
Package / Case 2-SMD Cylinder Square End
Base Product Number 2055
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names 118-2055-30-SM-RPLFDKR,2055-30-SM-RPLF-ND,2055-30-SM-RPLFCT-ND,2055-30-SM-RPLFTR-ND,118-2055-30-SM-RPLFTR,2055-30-SM-RPLFTR,-2055-30-SM-RPLFCT,2055-30-SM-RPLFCT,118-2055-30-SM-RPLFCT,-2055-30-SM-RPLFTR
Standard Package 800
Win Source Part Number 1121543-2055-30-SM-RPLF
Ultra Librarian 3D Model Ultra Librarian 2055-30-SM-RPLF CAD Model

Description

The 2055-30-SM-RPLF is a gas discharge tube arrester (GDT) manufactured by Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Series: 2055-SM
  • Packaging: Tape and Reel
  • Voltage DC Spark Over (Nom): 300V
  • Impulse Discharge Current (8/20µs): 2500A (2.5kA)
  • Tolerance: ±20%
  • Poles: 2
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.30.8000
  • REACH: Unaffected
