Same model may have multiple batches, images only for reference.

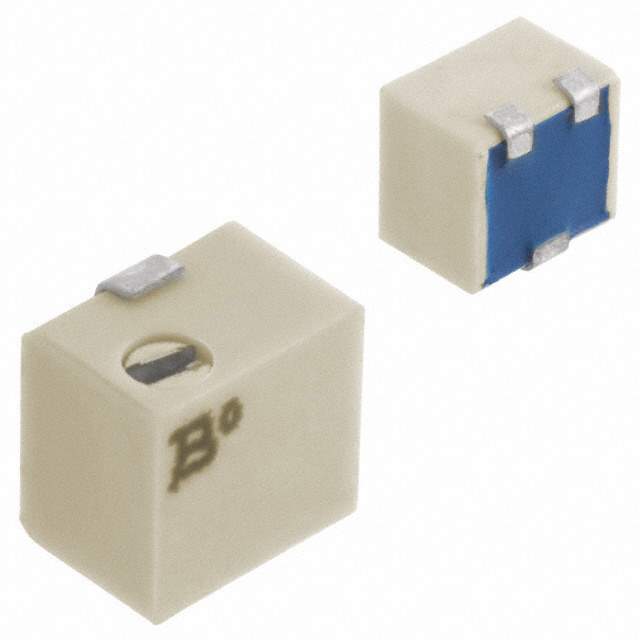

3214J-1-102E Real Image
Same model may have multiple batches, images only for reference.

3214J-1-102E

Part No 3214J-1-102E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.25W SMD
Datasheet
3214J-1-102E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3214 - Sealed
Packaging Reel package
Resistance (Ohms) 1k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 5
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.138" Face x 0.146" H (4.80mm x 3.50mm x 3.71mm)
Win Source Part Number 763155-3214J-1-102E
Family Name 3214
Introduction Date November 12, 2001
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3214J-1-102E CAD Model

Description

The Bourns Inc. Trimpot 3214 - Sealed series is a variable resistor or potentiometer that offers side adjustment with a tolerance of ±10% and a temperature coefficient of ±100ppm/°C.

  • Power: 0.25W, 1/4W
  • Resistance: 1k Ohms
  • Number of Turns: 5
  • Resistive Material: Cermet
  • Category: Potentiometers, Variable Resistors
  • Package: Reel package
  • Termination Style: J Lead
  • Mounting: SMD
  • Dimension: Rectangular - 0.189" x 0.138" face x 0.146" H (4.80mm x 3.50mm x 3.71mm)
  • Alternative Parts (cross-reference): TSM43ZJ102KR10, SM-42A102, SM-43A102
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • Made in: Costa Rica
  • Estimated EOL date: 2025
