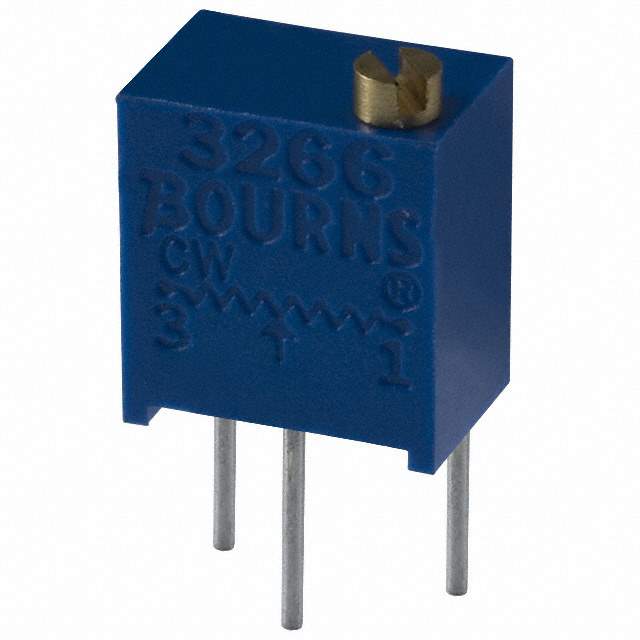

The 3266W-1-104L is a trimmer potentiometer manufactured by Bourns Inc. It is a small, adjustable resistor used for fine-tuning circuits. The '104L' indicates a resistance value of 100 kOhms. Trimmer potentiometers like this are commonly used in applications requiring precise adjustments, such as calibration and setting bias voltages.

Applications:

• Calibration Circuits: Used for precise calibration of electronic equipment.
• Bias Adjustments: Employed to set the bias voltage in amplifier circuits.
• Filter Tuning: Utilized in filter circuits to fine-tune the cutoff frequency.
• Sensor Adjustment: Used to adjust the sensitivity of sensor circuits.
• Feedback Control: Integrated into feedback control systems for fine-tuning the control loop.

Features:

• 100 kOhm Resistance: Provides a 100 kOhm resistance value for circuit adjustment.
• Top Adjust: Allows adjustment from the top for easy access.
• Sealed Construction: Offers protection against dust and moisture, enhancing reliability.
• Compact Size: Small form factor allows for use in space-constrained applications.
• Stable Resistance: Provides stable resistance over temperature and time.

Benefits:

• Precise Adjustment: Enables precise adjustment of circuit parameters, ensuring optimal performance.
• Easy to Use: Top adjust design allows for easy and convenient adjustment.
• Long-Term Stability: Stable resistance ensures consistent performance over time.
• Reliable Operation: Sealed construction protects against environmental factors, enhancing reliability.
• Versatile Application: Suitable for a wide range of applications requiring fine-tuning.

The 3266W-1-104L trimmer potentiometer is designed to provide accurate and reliable resistance adjustment in various electronic circuits. Its compact size and sealed construction make it suitable for use in demanding environments. The top adjust design allows for easy access, facilitating quick and precise adjustments. Bourns Inc. is known for its high-quality components, ensuring that the 3266W-1-104L trimmer potentiometer provides consistent and reliable performance. The specification sheet typically includes information on resistance tolerance, power rating, temperature coefficient of resistance, and rotational life. It is essential to use the correct tools and techniques when adjusting the trimmer to avoid damage. These trimmers are often panel mounted for easy accessibility.
