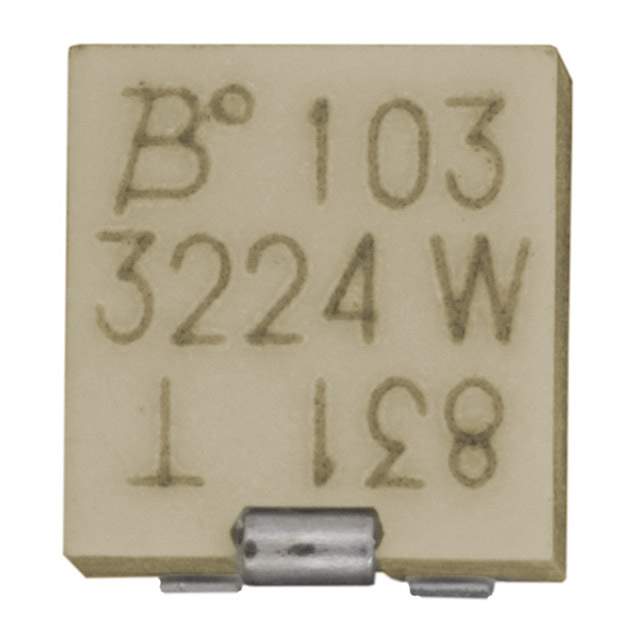

3224W-1-500E Real Image
Same model may have multiple batches, images only for reference.

3224W-1-500E

Part No 3224W-1-500E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50 OHM 0.25W SMD
Datasheet
3224W-1-500E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 50
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.138" Face x 0.209" H (4.80mm x 3.50mm x 5.30mm)
Win Source Part Number 1004979-3224W-1-500E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3224W-1-500E CAD Model

Description

The 3224W-1-500E is a cermet potentiometer with a resistance of 50 ohms and a power rating of 0.25W (1/4W).

  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 12
  • Adjustment: Top
  • Dimension: 0.189" x 0.138" face x 0.209" H (4.80mm x 3.50mm x 5.30mm)
  • Mounting: SMD (SMT)
  • Series Popularity: Medium
  • Packaging: Reel-TR
