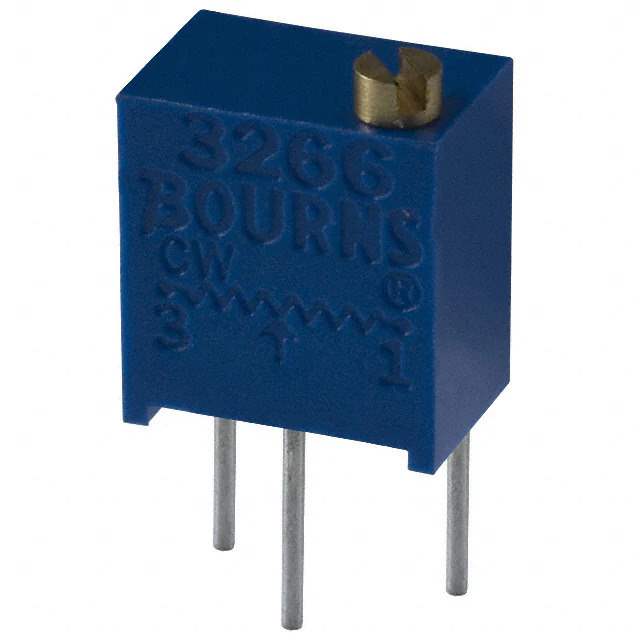

Same model may have multiple batches, images only for reference.

3266W-1-253

Name: 3266W-1-253
Brand: Bourns Inc.
SKU: 906556
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3266W-1-253
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 25K OHM 0.25W PC PIN TOP / 25 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet	3266W-1-253 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3266 - Sealed
Package	Tube
Product Status	Active
Resistance	25 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	12
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Size / Dimension	Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number	3266W
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
California Prop 65	Warning Information
Win Source Part Number	906556-3266W-1-253
Ultra Librarian 3D Model	Ultra Librarian 3266W-1-253 CAD Model

Alternative Products

Description

The Trimpot 3266 - Sealed is a potentiometer with a resistance of 25 kOhms.

Component: through-hole
Size: 0.250" x 0.170"
Series: Bourns Inc.
Power Rating: 0.25W
Adjustment Type: top adjustment
Termination Style: PC pins
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Turns: 12
Applications: commonly used in potentiometers, variable resistors, and trimmer potentiometers applications
Package: tube
Quantity per Package: 100 pieces per standard package
REACH: affected
California Prop 65: complies with California Prop 65 regulations
