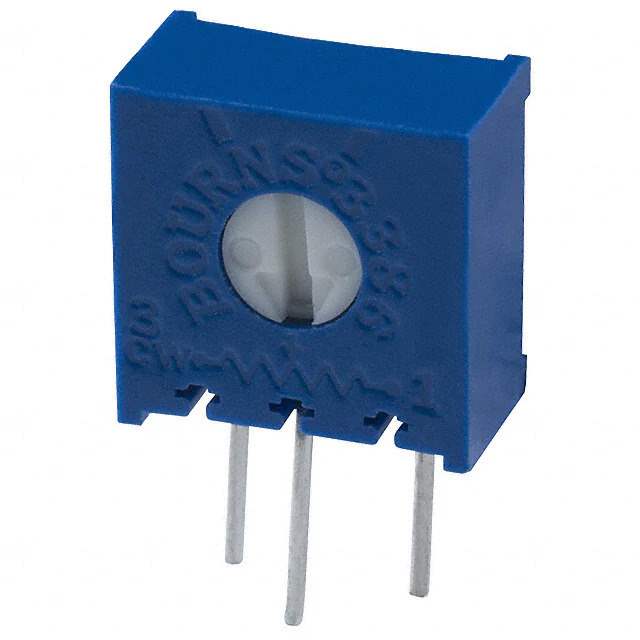

Same model may have multiple batches, images only for reference.

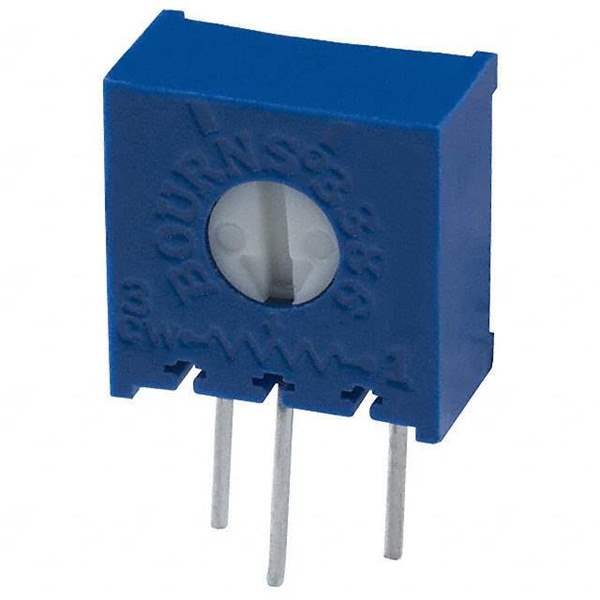

3386X-1-503LF Real Image
Same model may have multiple batches, images only for reference.

3386X-1-503LF

Part No 3386X-1-503LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.5W PC PIN SIDE / 50 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3386X-1-503LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3386 - Sealed
Package Tube
Product Status Active
Resistance 50 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number 3386X
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855748-3386X-1-503LF
Ultra Librarian 3D Model Ultra Librarian 3386X-1-503LF CAD Model

Description

The 855748-3386X-1-503LF is a trimmer potentiometer from Bourns Inc.'s Trimpot® 3386 - Sealed series. It is a variable resistor used for precise adjustment in electronic circuits.

  • Series: Trimpot® 3386 - Sealed
  • Resistance: 50 kOhms
  • Tolerance: ±10%
  • Mounting Type: Through-Hole
  • Termination Style: PC Pins
  • Size: Square (0.375" x 0.375" (9.53mm x 9.53mm))
  • Power Rating: 0.5W (1/2W)
  • Resistive Material: Cermet
  • Turns: 1
  • Adjustment: Side Adjustment
  • Packaging: Tube (100 pieces)
  • Product Status: Active
  • ECCN: EAR99
  • REACH: Unaffected
