Same model may have multiple batches, images only for reference.

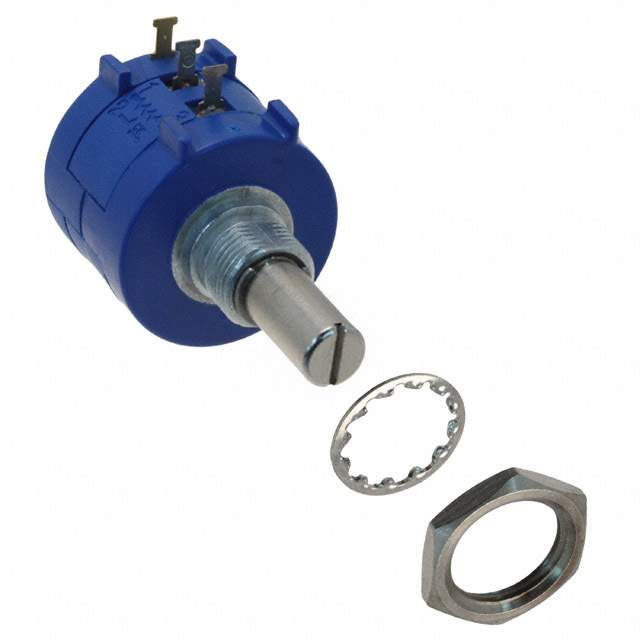

3590S-2-104L Real Image
Same model may have multiple batches, images only for reference.

3590S-2-104L

Part No 3590S-2-104L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 100K OHM 2W WIREWOUND LINEAR
Datasheet
3590S-2-104L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Taper Linear
Resistance (Ohms) 100k
Tolerance ±5%
Number of Gangs 1
Built in Switch None
Power (Watts) 2W
Temperature Coefficient ±50ppm/°C
Number of Turns 10
Rotation 3600°
Adjustment Type User Defined
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Panel Mount
Win Source Part Number 1005207-3590S-2-104L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3590S-2-104L CAD Model

Description

Bourns Inc. presents a 3590S series panel mount potentiometer with a 3/8-32 bushing thread.

  • Manufacturer: Bourns Inc.
  • Series: 3590S
  • Mounting Type: Panel Mount
  • Bushing Thread: 3/8-32
  • Number of Gangs: Single
  • Taper: Linear
  • Adjustment Type: User Defined
  • Resistive Material: Wirewound
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Actuator Type: Slotted
  • Actuator Length: 0.812" (20.63mm)
  • Actuator Diameter: 0.2497" (6.34mm)
  • Resistance: 100k Ohms
  • Power Rating: 2W
  • Turns: 10
  • Rotation: 3600°
  • Application: Variable Resistors and Potentiometers
