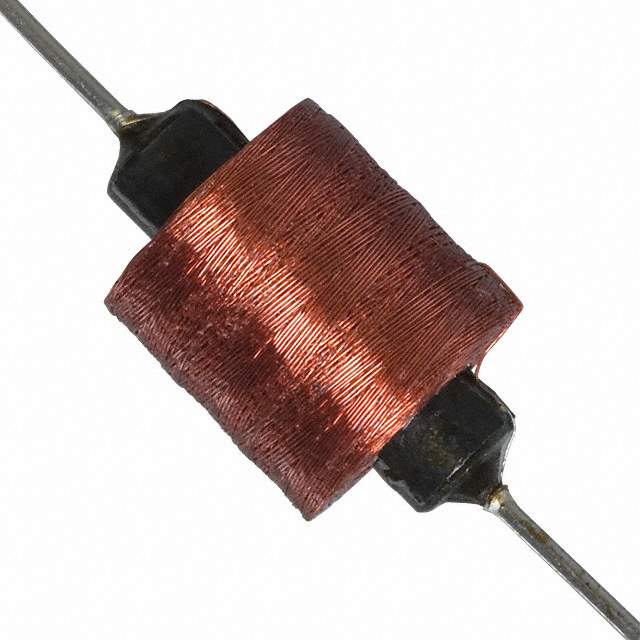

70F101AF-RC

Name: 70F101AF-RC
Brand: Bourns Inc.
SKU: 1044001
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	70F101AF-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 100MH 29MA 278 OHM TH / 100 mH Unshielded Drum Core, Wirewound Inductor 29 mA 278Ohm Max Axial
Datasheet	70F101AF-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	70F
Package	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 mH
Tolerance	±5%
Current Rating (Amps)	29 mA
Shielding	Unshielded
DC Resistance (DCR)	278Ohm Max
Q @ Freq	48 @ 79kHz
Frequency - Self Resonant	157kHz
Temperature Range - Operating	-55°C ~ 105°C
Inductance Frequency - Test	79 kHz
Mounting Type	Through Hole
Package / Case	Axial
Dimension	0.440" Dia x 0.630" L (11.18mm x 16.00mm)
Base Product Number	70F
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	70F101AFRC,M8393
Standard Package	600
Win Source Part Number	1044001-70F101AF-RC
Ultra Librarian 3D Model	Ultra Librarian 70F101AF-RC CAD Model

Alternative Products

Description

The 70F series fixed inductor is an excellent choice for use in a variety of electronic applications.

Inductance: 100mH
Tolerance: ±5%
DC Resistance: 278Ohm max
Current Rating: 29mA
Q @ Freq: 48 @ 79kHz
Self-Resonant Frequency: 157kHz
Package/Case: axial
Packaging: bulk
Manufacturer: Bourns Inc
REACH: unaffected
Operating Temperature Range: -55°C to 105°C

You May Also Be Interested in
