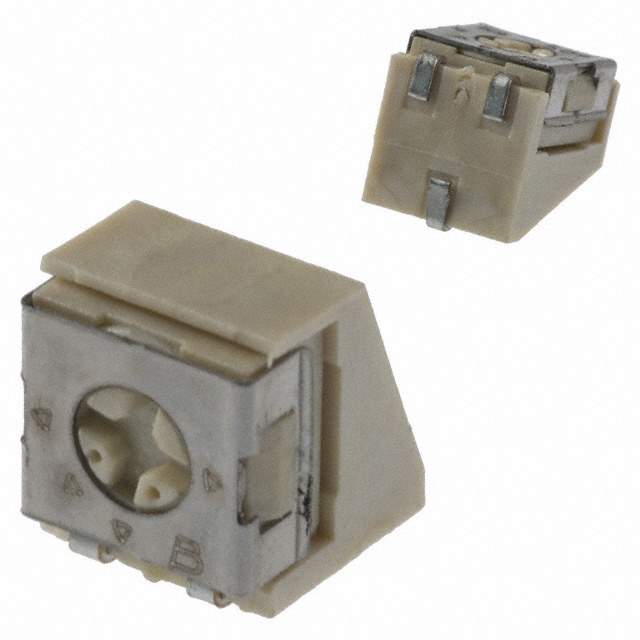

3314Z-1-204E Real Image
Same model may have multiple batches, images only for reference.

3314Z-1-204E

Part No 3314Z-1-204E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200K OHM 0.25W J LEAD / 200 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3314Z-1-204E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 200 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm)
Base Product Number 3314Z
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number 3314Z-204ETR-NDR,3314Z-204EDKR-NDR,3314Z1204E,3314Z-204EDKR,3314Z-204ETR,3314Z-204ECT-NDR,3314Z-204ECT
Standard Package 200
Win Source Part Number 1325852-3314Z-1-204E
Ultra Librarian 3D Model Ultra Librarian 3314Z-1-204E CAD Model

Description

The Bourns Inc. 3314Z-204E Trimmer Potentiometer is a high-quality surface mount device that is perfect for use in a wide range of electronic applications.

  • Resistance: 200 kOhms
  • Tolerance: ±20%
  • Power: 1/4W
  • Resistive Material: Cermet
  • Adjustment Type: Side Adjustment
  • Shape: Rectangular
  • Packaging: Reel
  • Units per Reel: 200
