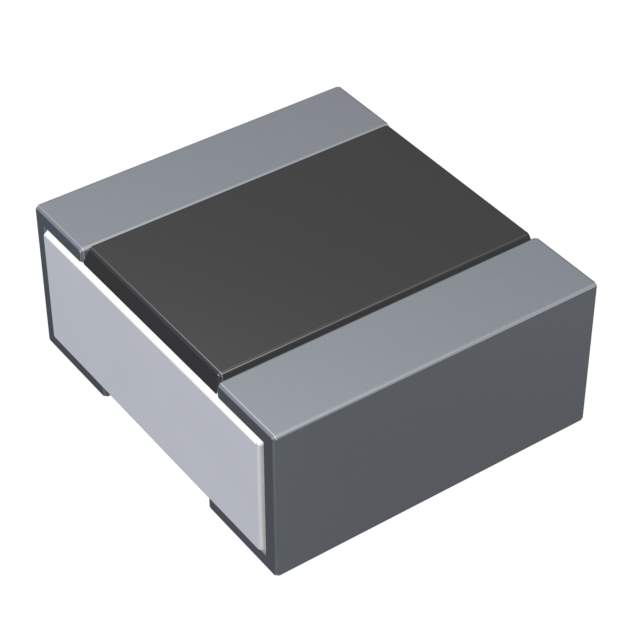

CR0402-FX-2701GLF Real Image
Same model may have multiple batches, images only for reference.

CR0402-FX-2701GLF

Part No CR0402-FX-2701GLF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.7K OHM 1% 1/16W 0402 / 2.7 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
Datasheet
CR0402-FX-2701GLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 2.7 kOhms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number CR0402
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CR0402-FX-2701GLFTR,CR0402-FX-2701GLFDKR,CR0402-FX-2701GLF-ND,CR0402-FX-2701GLFCT
Standard Package 10,000
Win Source Part Number 1326353-CR0402-FX-2701GLF
Ultra Librarian 3D Model Ultra Librarian CR0402-FX-2701GLF CAD Model

Description

The Bourns Inc. CR0402-FX-2701GLF is a chip resistor with a resistance of 2.7 kOhms and a tolerance of ±1%.

  • Manufacturer: Bourns Inc.
  • Resistance: 2.7 kOhms
  • Tolerance: ±1%
  • Composition: Thick Film
  • Power Rating: 0.063W or 1/16W
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Package: 0402 (1005 Metric)
  • Terminations: 2
  • Height (Seated): 0.016" (0.40mm)
  • Dimensions: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Ideal for: Various Electronic Devices
