Same model may have multiple batches, images only for reference.

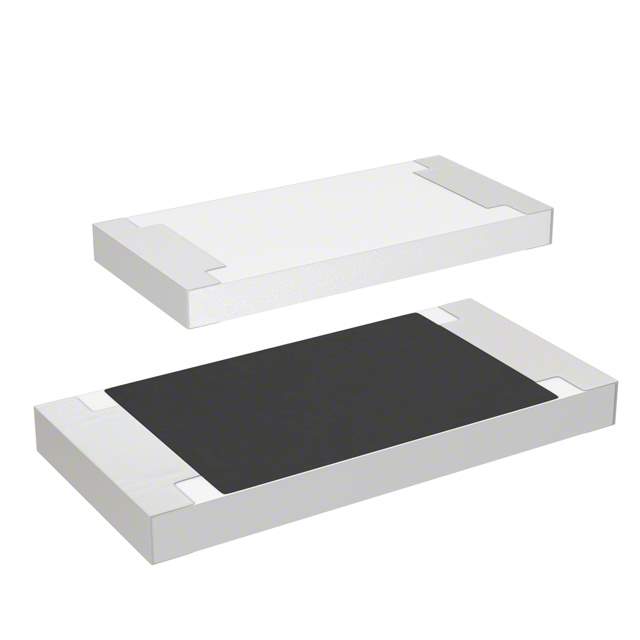

CRF2512-FX-R005ELF Real Image
Same model may have multiple batches, images only for reference.

CRF2512-FX-R005ELF

Part No CRF2512-FX-R005ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 2W 2512 / 5 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
Datasheet
CRF2512-FX-R005ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Product Status Obsolete
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.031" (0.80mm)
Number of Terminations 2
Base Product Number CRF2512
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CRF2512-FX-R005ELFCT,CRF2512-FX-R005ELFTR,CRF2512FXR005ELF,CRF2512-FX-R005ELFDKR
Standard Package 4,000
Win Source Part Number 1326129-CRF2512-FX-R005ELF
Ultra Librarian 3D Model Ultra Librarian CRF2512-FX-R005ELF CAD Model

Description

The Bourns Inc. 1326129-CRF2512-FX-R005ELF is a chip resistor that belongs to the Chip Resistor - Surface Mount category.

  • AEC-Q200 Rated: Yes
  • Power: 2W
  • Resistance: 5 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Moisture Resistant: Yes
  • Application: Automotive
  • Size/Dimension: 0.252" L x 0.126" W (6.40mm x 3.20mm)
  • Height Seated (Max): 0.031" (0.80mm)
  • Terminations: 2
  • Packaging: Reel - TR
  • Status: Obsolete
  • RoHS3 Compliant: Yes
