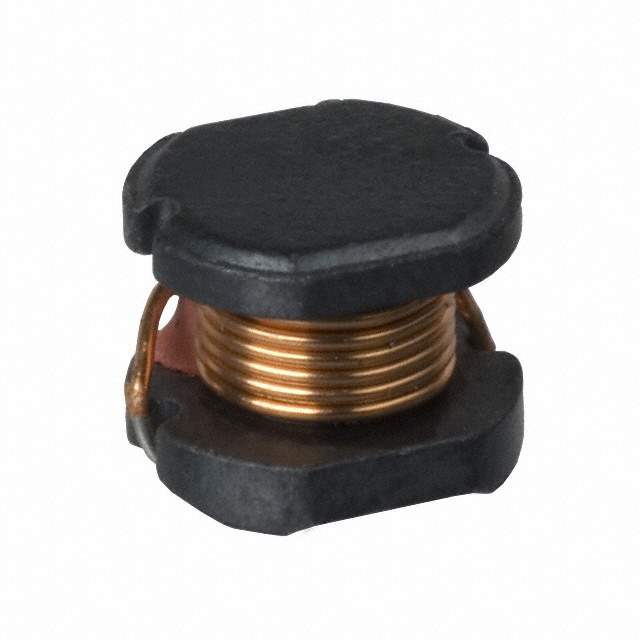

PM54-390L-RC Real Image
Same model may have multiple batches, images only for reference.

PM54-390L-RC

Part No PM54-390L-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 39UH 800MA 320MOHM SMD / 39 µH Unshielded Drum Core, Wirewound Inductor 800 mA 320mOhm Nonstandard
Datasheet
PM54-390L-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 39 µH
Tolerance ±15%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 1A
Shielding Unshielded
DC Resistance (DCR) 320mOhm
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number PM54
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number M8522DKR,PM54390LRC,M8522TR,M8522CT
Standard Package 1,500
Win Source Part Number 1327986-PM54-390L-RC
Ultra Librarian 3D Model Ultra Librarian PM54-390L-RC CAD Model

Description

The PM54-390L-RC from Bourns Inc. is a drum core, wirewound inductor that is shielded and has a size of 0.228" L x 0.228" W (5.80mm x 5.80mm).

  • Core Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Inductance: 39 µH
  • Tolerance: ±15%
  • Core Material: Ferrite
  • Q @ Freq: 24 @ 2.52MHz
  • Frequency Self-Resonant: 13MHz
  • DC Resistance (DCR): 320mOhm
  • Operating Temperature Range: -40°C to 125°C
  • RoHS3 Compliant: Yes
