Same model may have multiple batches, images only for reference.

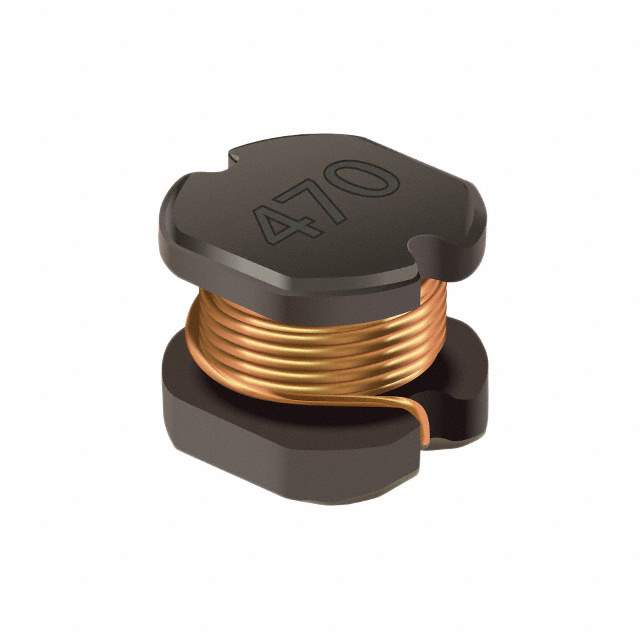

SDE0604A-101K Real Image
Same model may have multiple batches, images only for reference.

SDE0604A-101K

Part No SDE0604A-101K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE0604A-101K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE0604A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 620mA
Shielding Unshielded
DC Resistance (DCR) 700mOhm Max
Frequency - Self Resonant 7.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDE0604A
Other Names SDE0604A-101KCT,SDE0604A-101KTR,SDE0604A-101KDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274925-SDE0604A-101K
Ultra Librarian 3D Model Ultra Librarian SDE0604A-101K CAD Model

Description

The SDE0604A-101K is a fixed inductor manufactured by Bourns Inc.

  • Series: SDE0604A
  • Core Type: Drum Core
  • Type: Wirewound
  • Package: Tape & Reel
  • Shielding: Unshielded
  • Inductance: 100 µH
  • Tolerance: ±10%
  • AEC-Q200: Yes
  • Core Material: Ferrite
  • Frequency - Self Resonant: 7.5MHz
  • DC Resistance (DCR): 700mOhm Max
  • Current Rating (Amps): 800 mA
  • Inductance Frequency - Test: 1 kHz
  • Height - Seated (Max): 0.189" (4.80mm)
  • Standard Package: 1,000 units
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • HTSUS: 8504.50.4000
