Same model may have multiple batches, images only for reference.

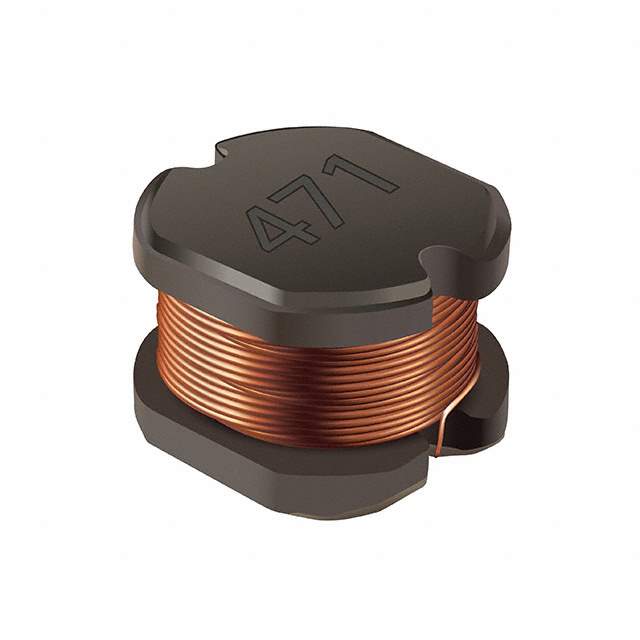

SDE0805A-1R5M Real Image
Same model may have multiple batches, images only for reference.

SDE0805A-1R5M

Part No SDE0805A-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE0805A-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE0805A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 5.8 A
Current - Saturation (Isat) 6.5A
Shielding Unshielded
DC Resistance (DCR) 20mOhm Max
Frequency - Self Resonant 115MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number SDE0805A
Other Names SDE0805A-1R5MCT,SDE0805A-1R5MDKR,SDE0805A-1R5MTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274912-SDE0805A-1R5M
Ultra Librarian 3D Model Ultra Librarian SDE0805A-1R5M CAD Model

Description

The Bourns SDE0805A series inductors are a drum core, wirewound type of fixed inductors.

  • Core Type: Drum Core
  • Inductor Type: Wirewound
  • Shielding: Unshielded
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Frequency - Self Resonant: 115MHz
  • DC Resistance (DCR): 20mOhm Max
  • Current Rating: 5.8 A
  • Height: 0.217" (5.50mm) Max
  • Package Type: Tape & Reel
  • Mounting Type: SMD (SMT)
  • Ratings: AEC-Q200
