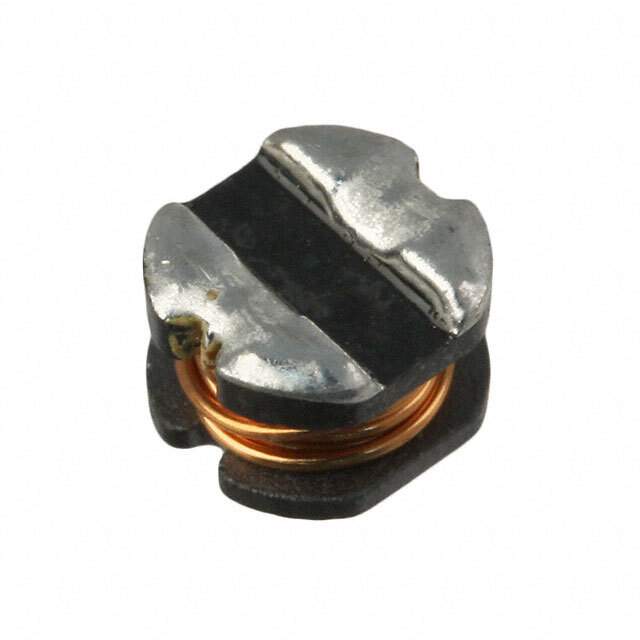

SDR0403-2R7ML Real Image
Same model may have multiple batches, images only for reference.

SDR0403-2R7ML

Part No SDR0403-2R7ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2.7UH 2.43A 52MOHM SMD / 2.7 µH Unshielded Drum Core, Wirewound Inductor 2.43 A 52mOhm Max Nonstandard
Datasheet
SDR0403-2R7ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±20%
Current Rating (Amps) 2.43 A
Current - Saturation (Isat) 3.5A
Shielding Unshielded
DC Resistance (DCR) 52mOhm Max
Q @ Freq 28 @ 7.96MHz
Frequency - Self Resonant 75MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SDR0403
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number -SDR0403-2R7ML-ND,SDR0403-2R7ML-ND,SDR0403-2R7MLCT,SDR04032R7ML,-SDR0403-2R7MLTR,SDR0403-2R7MLTR,-SDR0403-2R7MLCT,SDR0403-2R7MLDKR,-SDR0403-2R7ML
Standard Package 2,000
Win Source Part Number 1327818-SDR0403-2R7ML
Ultra Librarian 3D Model Ultra Librarian SDR0403-2R7ML CAD Model

Description

The Bourns Inc. SDR0403-2R7ML Fixed Inductor is a high-quality inductor that is designed to provide excellent performance.

  • Packaging: Reel - TR
  • Type: Drum core, wirewound
  • Inductance: 2.7 µH
  • Tolerance: ±20%
  • Mounting: Surface Mount
  • Current Rating: 2.43 A
  • Material: Ferrite
  • Q @ Freq: 28 @ 7.96MHz
  • Core/Type: Drum Core, Wirewound
