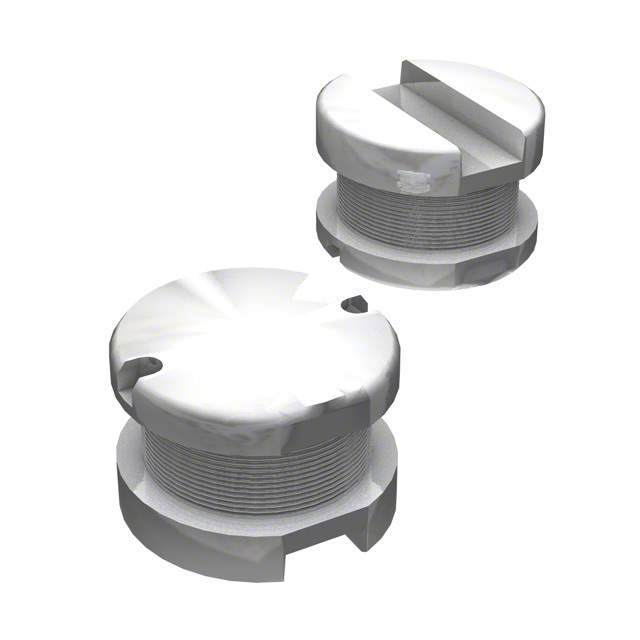

SDR0603-120ML Real Image
Same model may have multiple batches, images only for reference.

SDR0603-120ML

Part No SDR0603-120ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-120ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±20%
Current Rating (Amps) 1.02 A
Current - Saturation (Isat) 1.3A
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq 23 @ 2.52MHz
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Other Names SDR0603-120ML,118-SDR0603-120MLCT,118-SDR0603-120MLTR,118-SDR0603-120MLDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274771-SDR0603-120ML
Ultra Librarian 3D Model Ultra Librarian SDR0603-120ML CAD Model

Description

The 1274771-SDR0603-120ML is a fixed inductor that is used in Inductors, Coils, Chokes.

  • Inductance: 12 µH
  • Tolerance: ±20%
  • Maximum Current Rating: 1.02 A
  • DC Resistance (DCR): 160mOhm Max
  • Package Type: Nonstandard
  • Height Seated (Max): 0.154" (3.90mm)
  • Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Temperature Range: -40°C ~ 125°C
  • Frequency Self-Resonant: 30MHz
  • REACH Status: Unaffected REACH
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
