Same model may have multiple batches, images only for reference.

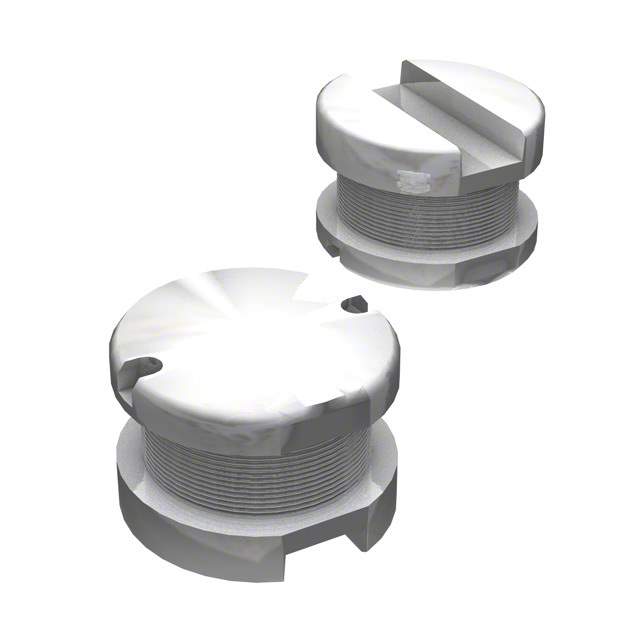

SDR0603-5R0ML Real Image
Same model may have multiple batches, images only for reference.

SDR0603-5R0ML

Part No SDR0603-5R0ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-5R0ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 2.1A
Shielding Unshielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 19 @ 7.96MHz
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Other Names SDR0603-5R0MLTR,SDR0603-5R0MLDKR,SDR0603-5R0ML,SDR06035R0ML,SDR0603-5R0MLCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274765-SDR0603-5R0ML
Ultra Librarian 3D Model Ultra Librarian SDR0603-5R0ML CAD Model

Description

The Bourns Inc. SDR0603 series inductor is a drum core, wirewound type inductor.

  • Inductance: 5 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 19 @ 7.96MHz
  • Frequency Self-Resonant: 50MHz
  • DC Resistance: 70mOhm Max
  • Shielding: Non-shielded
  • Package/Case: Non-standard
  • Mounting: SMD (SMT)
  • Current Rating: 1.6 A
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.228" L x 0.228" W (5.80mm x 5.80mm)
