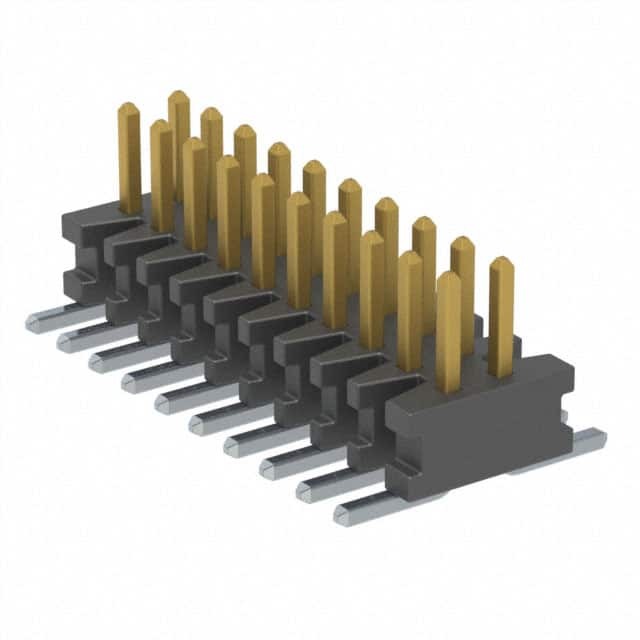

FTMH-110-02-F-DV-P-TR
Same model may have multiple batches, images only for reference.

FTMH-110-02-F-DV-P-TR

Part No FTMH-110-02-F-DV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 1MM / Connector Header Surface Mount 20 position 0.039" (1.00mm)
Datasheet
FTMH-110-02-F-DV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTMH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.075" (1.90mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.8A per Contact
Base Product Number FTMH-110
Standard Package 550 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 872399-FTMH-110-02-F-DV-P-TR
Ultra Librarian 3D Model Ultra Librarian FTMH-110-02-F-DV-P-TR CAD Model

Description

The FTMH series is a versatile line of rectangular connectors designed for board to board applications. The 872399-FTMH-110-02-F-DV-P-TR is a 20-position male pin header with a pick and place feature.

  • Positions: 20
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Rows: Two
  • Pitch: 0.039" (1.00mm)
  • Current Rating: 2.8A per contact
  • Packaging: Tape & reel
  • Insulation Material: UL94 V-0 rated liquid crystal polymer (LCP)
  • Mounting: Surface mount
  • Operating Temperature: -55°C to 125°C
