Same model may have multiple batches, images only for reference.

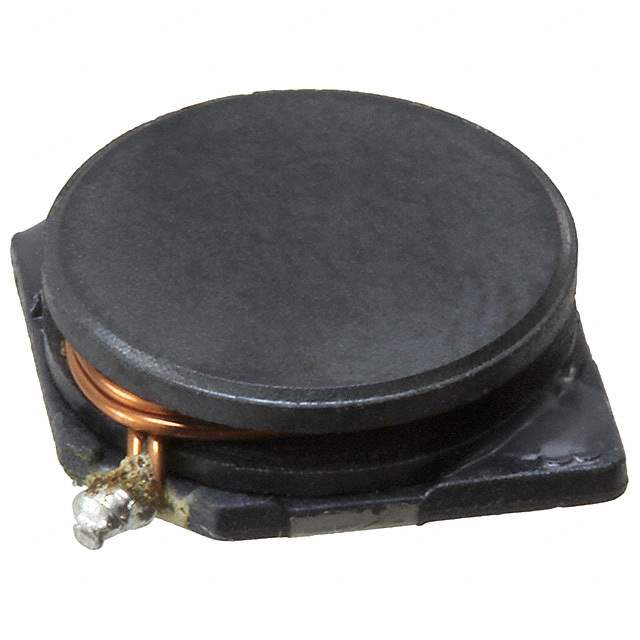

SDR1030-681K Real Image
Same model may have multiple batches, images only for reference.

SDR1030-681K

Part No SDR1030-681K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1030-681K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 230 mA
Current - Saturation (Isat) 270mA
Shielding Unshielded
DC Resistance (DCR) 3.3Ohm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 3.2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR1030
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274622-SDR1030-681K
Ultra Librarian 3D Model Ultra Librarian SDR1030-681K CAD Model

Description

The SDR1030-681K is a drum core, wirewound inductor belonging to the SDR1030 series.

  • Shielding: Unshielded
  • Tolerance: ±10%
  • Q @ Freq: 18 @ 796kHz
  • Frequency Self-Resonant: 3.2MHz
  • Package: Nonstandard
  • DC Resistance (DCR): 3.3Ohm Max
  • Temperature Range: from -40°C to 125°C
  • Inductance: 680μH
  • Current Rating (Amps): 230mA
  • Package: tape and reel
