Same model may have multiple batches, images only for reference.

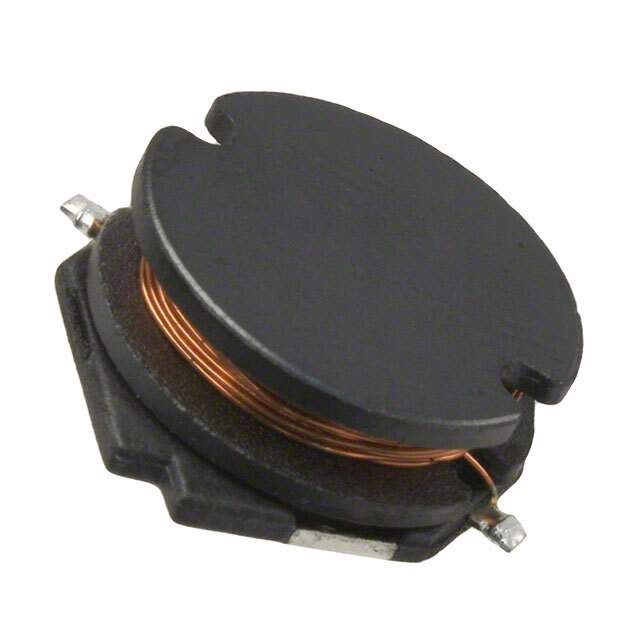

SDR1305-471K Real Image
Same model may have multiple batches, images only for reference.

SDR1305-471K

Part No SDR1305-471K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1305-471K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1305
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 670 mA
Current - Saturation (Isat) 700mA
Shielding Unshielded
DC Resistance (DCR) 1.15Ohm Max
Q @ Freq 14 @ 796kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SDR1305
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274594-SDR1305-471K
Ultra Librarian 3D Model Ultra Librarian SDR1305-471K CAD Model

Description

The SDR1305-471K is a fixed inductor manufactured by Bourns Inc.

  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Shielding: Unshielded
  • Tolerance: ±10%
  • Inductance: 470 μH
  • DC Resistance: 1.15Ohm Max
  • Current Rating: 670 mA
  • Saturation Current: 700mA
