Same model may have multiple batches, images only for reference.

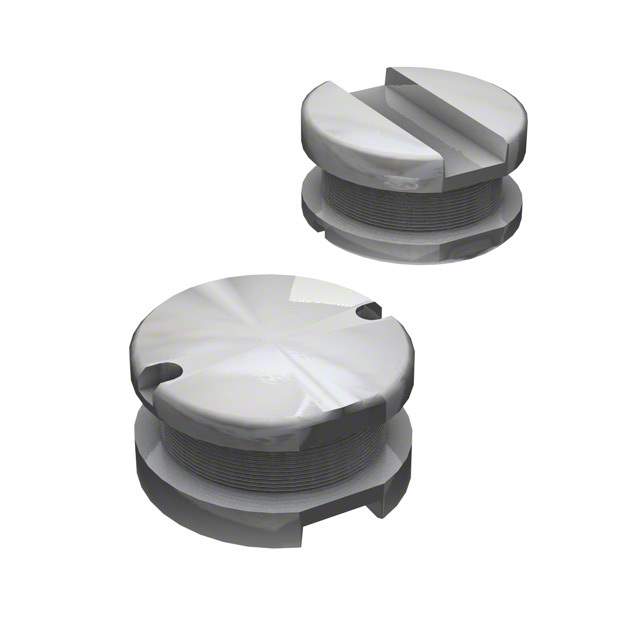

SDR1307-5R6ML Real Image
Same model may have multiple batches, images only for reference.

SDR1307-5R6ML

Part No SDR1307-5R6ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307-5R6ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 11A
Shielding Unshielded
DC Resistance (DCR) 15mOhm Max
Q @ Freq 24 @ 7.96MHz
Frequency - Self Resonant 28MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307
Other Names SDR13075R6ML,SDR1307-5R6ML,SDR1307-5R6MLTR,SDR1307-5R6MLCT,SDR1307-5R6MLDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274589-SDR1307-5R6ML
Ultra Librarian 3D Model Ultra Librarian SDR1307-5R6ML CAD Model

Description

The SDR1307 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel package.

  • Shielding: Unshielded
  • Inductance: 5.6 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 24 @ 7.96 MHz
  • Frequency Self-Resonant: 28 MHz
  • DC Resistance (DCR): 15 mOhm Max
  • Current Rating: 6.5 A
  • Operating Temperature: -40°C to 125°C
  • Applications: Power supplies, DC/DC converters, and filtering circuits
