Same model may have multiple batches, images only for reference.

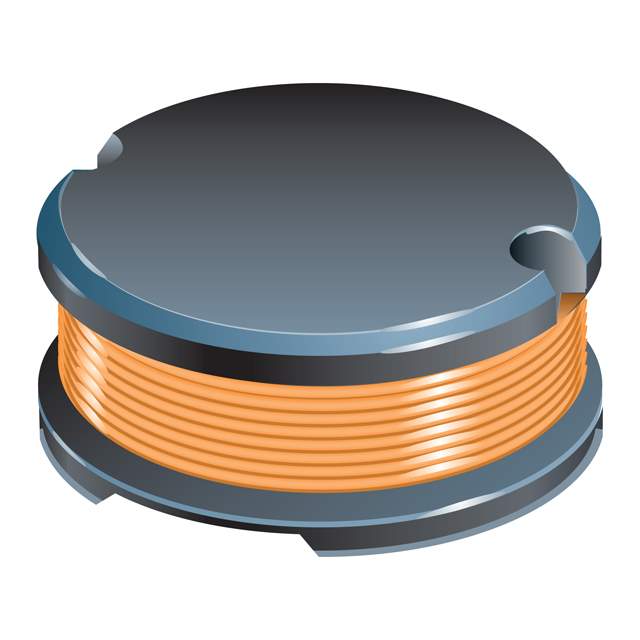

SDR1307A-2R2M Real Image
Same model may have multiple batches, images only for reference.

SDR1307A-2R2M

Part No SDR1307A-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307A-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 18A
Shielding Unshielded
DC Resistance (DCR) 6mOhm Max
Q @ Freq 22 @ 7.96MHz
Frequency - Self Resonant 50MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-2R2MCT,SDR1307A-2R2MDKR,SDR1307A-2R2M,SDR1307A-2R2MTR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274573-SDR1307A-2R2M
Ultra Librarian 3D Model Ultra Librarian SDR1307A-2R2M CAD Model

Description

The Bourns Inc. SDR1307A-2R2M is a fixed inductor that is part of the SDR1307A series.

  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Current Rating: 9A
  • DC Resistance (DCR): 6mOhm max
