Same model may have multiple batches, images only for reference.

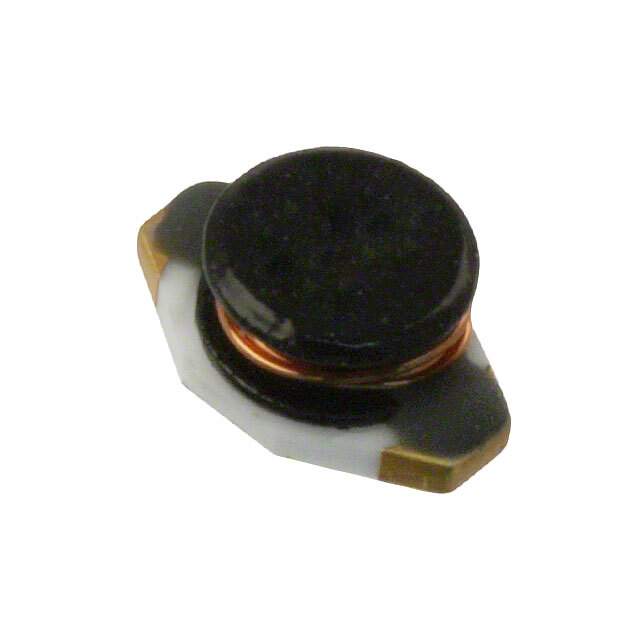

SDR6603-101M Real Image
Same model may have multiple batches, images only for reference.

SDR6603-101M

Part No SDR6603-101M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR6603-101M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR6603
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 300 mA
Current - Saturation (Isat) 310mA
Shielding Unshielded
DC Resistance (DCR) 1.3Ohm Max
Q @ Freq 29 @ 796kHz
Frequency - Self Resonant 9MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SDR6603
Other Names -SDR6603-101MTR,SDR6603-101M,SDR6603-101MTR,-SDR6603-101M,SDR6603101M,SDR6603-101MCT,-SDR6603-101M,-SDR6603-101MCT
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274507-SDR6603-101M
Ultra Librarian 3D Model Ultra Librarian SDR6603-101M CAD Model

Description

The SDR6603 is a fixed inductor that falls under the category of Inductors, Coils, Chokes>Fixed Inductors.

  • Package: Tape & Reel (TR), Cut Tape (CT)
  • Standard Package: 600
  • Series: SDR6603
  • Core: Drum Core, Wirewound
  • Shielding: Unshielded
  • Inductance: 100 µH
  • Height - Seated (Max): 0.115" (2.92mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material - Core: Ferrite
  • Q @ Freq: 29 @ 796kHz
  • Frequency - Self-Resonant: 9MHz
  • Package / Case: Nonstandard
  • DC Resistance (DCR): 1.3Ohm Max
  • Supplier Device Package: -
  • Temperature Range - Operating: -40°C ~ 125°C
  • Dimension: 0.260" L x 0.175" W (6.60mm x 4.45mm)
  • Manufacturer: Bourns Inc.
  • Other Names: -SDR6603-101MTR, SDR6603-101M, SDR6603-101MTR, -SDR6603-101M, SDR6603101M, SDR6603-101MCT, -SDR6603-101M, -SDR6603-101MCT
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8504.50.4000
