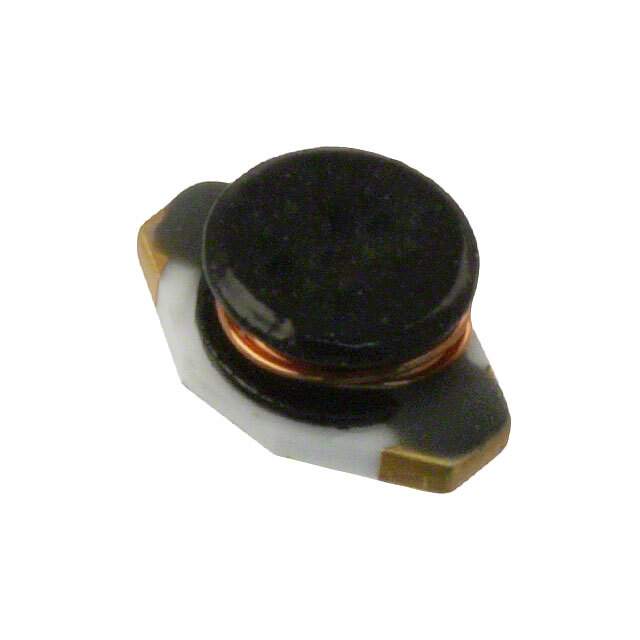

SDR6603-150M Real Image
Same model may have multiple batches, images only for reference.

SDR6603-150M

Part No SDR6603-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR6603-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR6603
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 900mA
Shielding Unshielded
DC Resistance (DCR) 230mOhm Max
Q @ Freq 17 @ 2.52MHz
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SDR6603
Other Names SDR6603150M,-SDR6603-150MTR,SDR6603-150MTR,-SDR6603-150M,-SDR6603-150MCT,SDR6603-150MCT,SDR6603-150M,-SDR6603-150M
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274501-SDR6603-150M
Ultra Librarian 3D Model Ultra Librarian SDR6603-150M CAD Model

Description

The SDR6603 is a fixed inductor that has an inductance of 15μH and a tolerance of ±20%.

  • Win Source Part Number: 1274501-SDR6603-150M
  • Temperature Range: -40°C to 125°C
  • Core: Drum Core
  • Type: Wirewound
  • Package/Case: Nonstandard
  • Mounting: Surface Mount
  • Package: Tape and Reel
  • Quantity: 600
  • Current Rating: 1A
