Same model may have multiple batches, images only for reference.

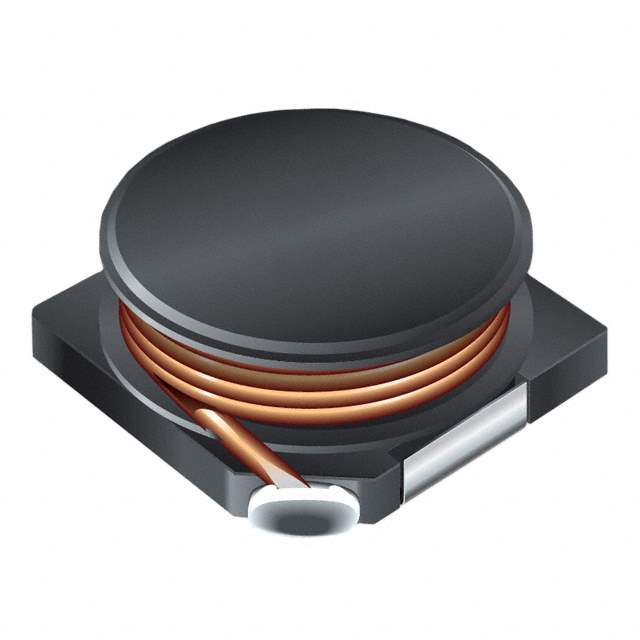

SDR7030-681K Real Image
Same model may have multiple batches, images only for reference.

SDR7030-681K

Part No SDR7030-681K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7030-681K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 180 mA
Current - Saturation (Isat) 180mA
Shielding Unshielded
DC Resistance (DCR) 4.35Ohm Max
Q @ Freq 28 @ 796kHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR7030
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274487-SDR7030-681K
Ultra Librarian 3D Model Ultra Librarian SDR7030-681K CAD Model

Description

Bourns Inc. SDR7030 Series Inductor is a wirewound drum core inductor with an inductance of 680 µH and a tolerance of ±10%.

  • Manufacturer: Bourns Inc.
  • Series: SDR7030
  • Inductance: 680 µH
  • Tolerance: ±10%
  • Core Material: ferrite
  • Q @ Freq: 28 @ 796kHz
  • DC Resistance (DCR): 4.35Ohm Max
  • Current Rating: 180 mA
  • Mounting: SMD (SMT)
  • Package/Case: non-standard
  • Operating Temperature Range: -40°C ~ 125°C
  • Package: tape & reel (TR)
  • Height Seated (Max): 0.130" (3.30mm)
  • Inductance Frequency Test: 100 kHz
  • Self-Resonant Frequency: 5MHz
  • REACH Status: unaffected
