Same model may have multiple batches, images only for reference.

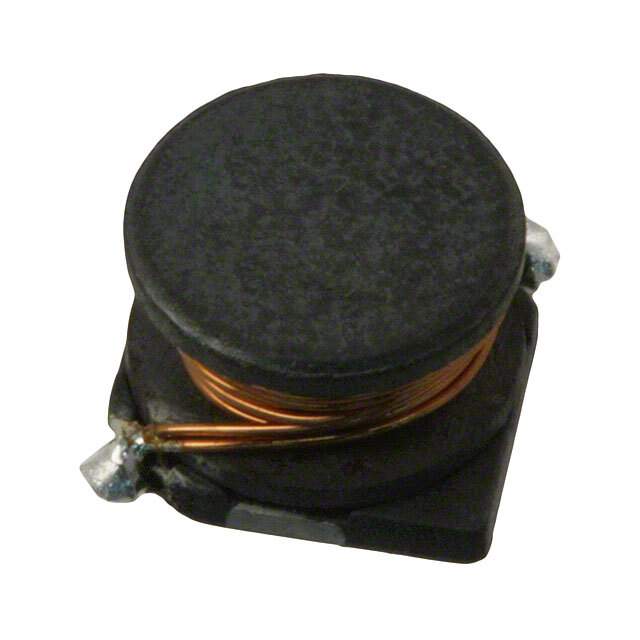

SDR7045-100M Real Image
Same model may have multiple batches, images only for reference.

SDR7045-100M

Part No SDR7045-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7045-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 2.3A
Shielding Unshielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 28 @ 2.52MHz
Frequency - Self Resonant 23MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR7045
Other Names SDR7045-100MDKR,SDR7045-100MCT,SDR7045-100MTR,SDR7045100M,SDR7045-100M
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274486-SDR7045-100M
Ultra Librarian 3D Model Ultra Librarian SDR7045-100M CAD Model

Description

The SDR7045 series of drum core, wirewound inductors from Bourns Inc. are designed to offer unshielded shielding and 10 µH of inductance.

  • Manufacturer: Bourns Inc.
  • Inductance: 10 µH
  • Q @ Freq: 28 @ 2.52MHz
  • Frequency Self-Resonant: 23MHz
  • DC Resistance (DCR): 70mOhm Max
  • Current Rating: 2 A
  • Tolerance: ±20%
  • Mounting Type: SMD (SMT)
  • Core Material: ferrite
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • Package Dimensions: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • Package: tape & reel package of 1,000 units
  • Shielding: unshielded
