Same model may have multiple batches, images only for reference.

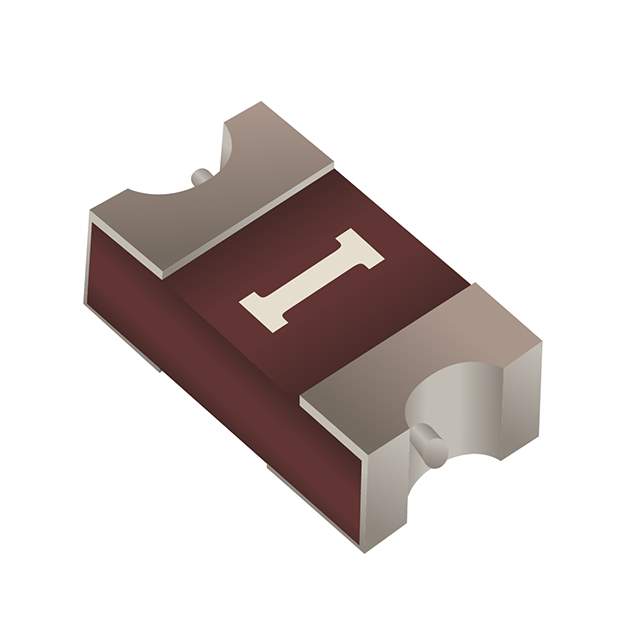

SF-1206S1500W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S1500W-2

Part No SF-1206S1500W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S1500W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxW
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 15 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric), Concave
Breaking Capacity @ Rated Voltage 50A
Melting I2t 24.5
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm)
DC Cold Resistance 0.0035 Ohms
Base Product Number SF-1206
Other Names SF-1206S1500W-2TR,SF-1206S1500W-2DKR,SF-1206S1500W-2CT
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302035-SF-1206S1500W-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S1500W-2 CAD Model

Description

The Bourns Inc. SF-1206S1500W-2 is a slow blow fuse component that has a current rating of 15A and a voltage rating of 32V. This component is part of the SinglFuse™ SF-1206SxxxW series and has a package size of 1206 (3216 Metric), Concave.

  • Current Rating: 15A
  • Voltage Rating: 32V
  • Series: SinglFuse™ SF-1206SxxxW series
  • Package Size: 1206 (3216 Metric), Concave
  • Mounting: Surface mount
  • Temperature Range: -55°C to 125°C
