Same model may have multiple batches, images only for reference.

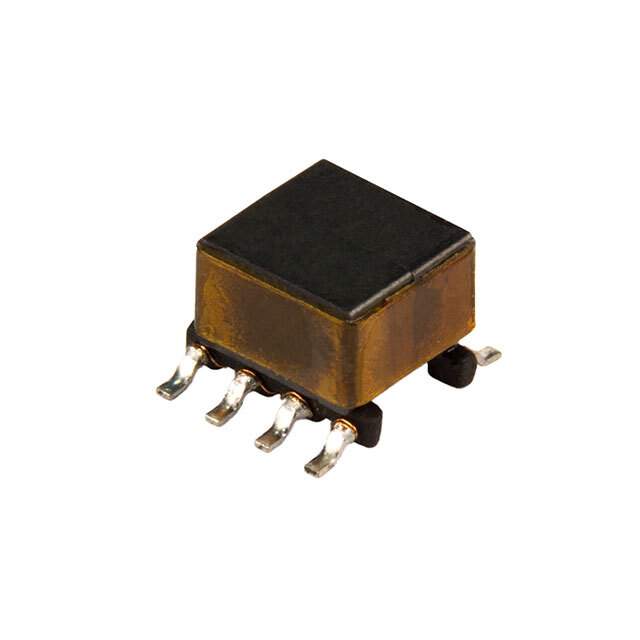

SM51430EL Real Image
Same model may have multiple batches, images only for reference.

SM51430EL

Part No SM51430EL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description TRANSFORMER G FAST 8SMD / 10µH LAN Pulse Transformer 1:1 Surface Mount
Datasheet
SM51430EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series SM
Package Tape & Reel (TR)
Transformer Type LAN
Inductance 10µH
Mounting SMD (SMT)
Dimension 0.299" L x 0.197" W (7.60mm x 5.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number SM514
Standard Package 900
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232755-SM51430EL
Ultra Librarian 3D Model Ultra Librarian SM51430EL CAD Model

Description

The SM51430EL is a pulse transformer manufactured by Bourns Inc.

  • Win Source Part Number: 1232755-SM51430EL
  • Application: LAN applications
  • Transformer Type: SM
  • Inductance: 10μH
  • Mounting: SMD (SMT) mountable
  • Height: 0.209" (5.30mm)
  • Dimension: 0.299" L x 0.197" W (7.60mm x 5.00mm)
  • Standard Package: 900
  • Temperature Range: -40°C to 85°C
