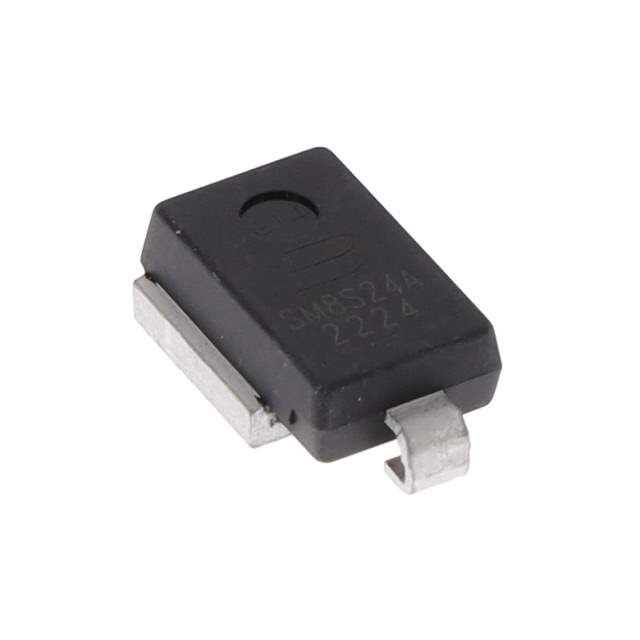

SM8S43A-Q Real Image
Same model may have multiple batches, images only for reference.

SM8S43A-Q

Part No SM8S43A-Q
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Datasheet
SM8S43A-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, SM8SF-Q
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 43V
Voltage - Breakdown (Min) 47.8V
Voltage - Clamping (Max) @ Ipp 69.4V
Current - Peak Pulse (10/1000µs) 95A
Power - Peak Pulse 6600W (6.6kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-218AB
Supplier Device Package DO-218
Base Product Number SM8S4
Other Names 118-SM8S43A-QTR,SM8S43A-Q,118-SM8S43A-QCT,118-SM8S43A-QDKR
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1301556-SM8S43A-Q
Ultra Librarian 3D Model Ultra Librarian SM8S43A-Q CAD Model

Description

The SM8S43A-Q is a Zener diode from Bourns Inc. that is designed for use in circuit protection applications such as automotive.

  • Manufacturer: Bourns Inc.
  • Type: Zener
  • Application: Circuit protection, automotive
  • Channel: Unidirectional
  • Reverse Standoff Voltage: 43V
  • Breakdown Voltage: 47.8V
  • Clamping Voltage @ a peak pulse power of: 69.4V @ 6600W (6.6kW)
  • Package: DO-218AB
  • Mounting Technology: SMD (SMT)
  • Packaging: Tape and reel
  • Standard Package: 750
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Capacitance @ Frequency: Not specified
  • REACH: REACH affected
  • ECCN: EAR99
