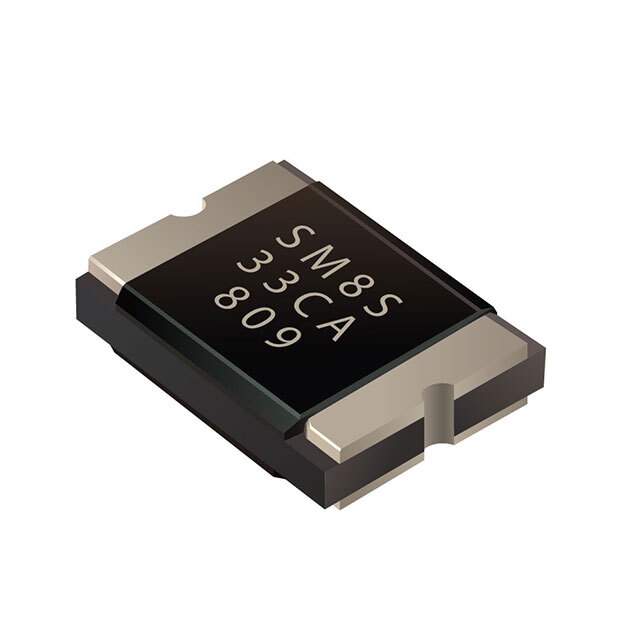

SM8SF30A-Q Real Image
Same model may have multiple batches, images only for reference.

SM8SF30A-Q

Part No SM8SF30A-Q
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Datasheet
SM8SF30A-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, SM8SF-Q
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30V
Voltage - Breakdown (Min) 33.3V
Voltage - Clamping (Max) @ Ipp 48.4V
Current - Peak Pulse (10/1000µs) 145A
Power - Peak Pulse 7000W (7kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case 2-LDFN
Supplier Device Package 2-DFN (8.1x10.5)
Base Product Number SM8SF
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1301541-SM8SF30A-Q
Ultra Librarian 3D Model Ultra Librarian SM8SF30A-Q CAD Model

Description

The SM8SF30A-Q is a TVS diode component manufactured by Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Type: Zener
  • Application: Automotive
  • Package: 750
  • Mounting Type: SMD (SMT)
  • Voltage Reverse Standoff: 30V
  • Voltage Breakdown: 33.3V
  • Voltage Clamping @ Ipp: 48.4V
  • Power Peak Pulse: 7000W (7kW)
  • Current Peak Pulse (10/1000µs): 145A
