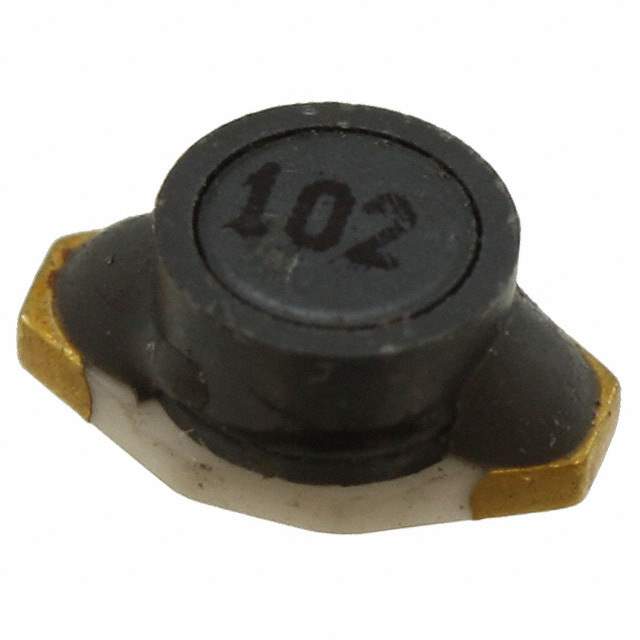

SRE6603-470M Real Image
Same model may have multiple batches, images only for reference.

SRE6603-470M

Part No SRE6603-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRE6603-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRE6603
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 240mA
Shielding Shielded
DC Resistance (DCR) 230mOhm Max
Q @ Freq 40 @ 100kHz
Frequency - Self Resonant 20MHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SRE6603
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274454-SRE6603-470M
Ultra Librarian 3D Model Ultra Librarian SRE6603-470M CAD Model

Description

The Bourns Inc. 1274454-SRE6603-470M is a fixed inductor that is used in a variety of applications.

  • Series: SRE6603
  • Type: drum core, wirewound
  • Packaging: tape and reel (TR)
  • Shielded: Yes
  • Inductance: 47µH
  • Tolerance: ±20%
  • Material of the core: ferrite
  • Q @ Freq: 40 @ 100kHz
  • Frequency Self-Resonant: 20MHz
  • Package/Case: nonstandard
  • DC Resistance (DCR): 230mOhm Max
  • Supplier Device Package: not specified
  • Operating Temperature Range: -25°C to 105°C
  • Manufacturer: Bourns Inc.
  • ECCN: EAR99
  • Product Status: obsolete
  • Current Saturation: 240mA
