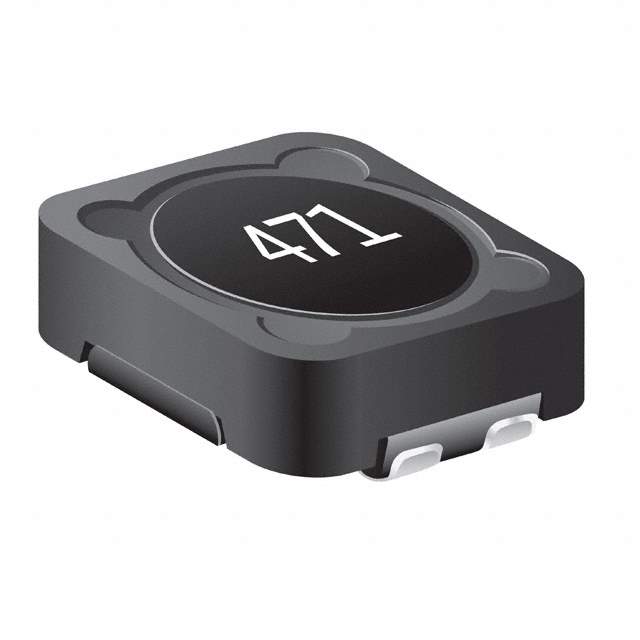

Bourns Inc. presents the SRF0703 series of inductors, coils, and chokes, which are arrays of signal transformers.

• Shielded: Yes
• Package: Tape and Reel
• Standard Package: 1,500
• Mounting: SMD (SMT)
• Tolerance: ±20%
• Height: 0.142 inches (3.60mm)
• Number of Coils: 2
• Inductance (Series): 3.28 mH
• Inductance (Parallel): 820 µH
• Current Rating (Parallel): 270mA
• Current Rating (Series): 134mA
• Current Saturation (Parallel): 280mA
• Current Saturation (Series): 140mA
• DC Resistance (DCR) (Parallel): 5.01Ohm Max
• DC Resistance (DCR) (Series): 20.07Ohm Max
• Package/Case: Nonstandard
• Temperature Range: -40°C to 125°C
• Dimension: 0.299 inches L x 0.299 inches W (7.60mm x 7.60mm)
• MSL: 1 (Unlimited)
