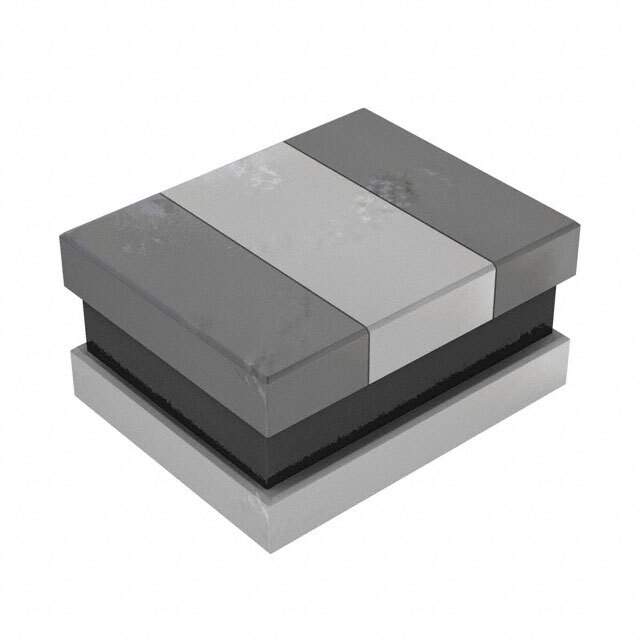

SRN2010-R68M Real Image
Same model may have multiple batches, images only for reference.

SRN2010-R68M

Part No SRN2010-R68M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2010-R68M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2010
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 3.2A
Shielding Semi-Shielded
DC Resistance (DCR) 55mOhm Max
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 200MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.040" (1.02mm)
Base Product Number SRN2010
Other Names SRN2010-R68MTR,SRN2010-R68MDKR,SRN2010-R68MCT,2266-SRN2010-R68M
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274433-SRN2010-R68M
Ultra Librarian 3D Model Ultra Librarian SRN2010-R68M CAD Model

Description

The SRN2010-R68M is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Semi-shielded
  • Inductance: 680 nH
  • Tolerance: ±20%
  • Maximum Height: 0.040 inches
  • DC Resistance: 55mOhm Max
  • Current Rating: 2.8A
  • Q @ Freq: 10 @ 1MHz
  • Frequency of Self-Resonant: 200MHz
  • Material: Ferrite
  • Package/Case: Nonstandard
  • Operating Temperature Range: from -55°C to 125°C
  • Dimension: 0.079 inches in length and 0.063 inches in width
