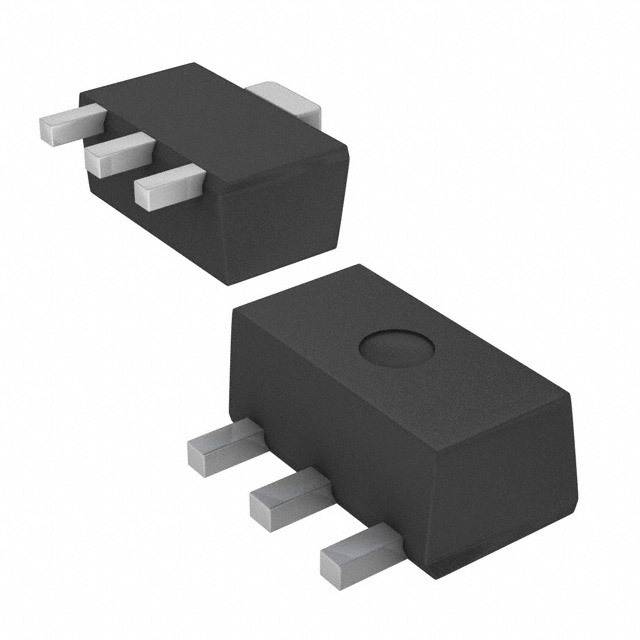

BCX56-10,115

Name: BCX56-10,115
Brand: Nexperia USA Inc.
SKU: 437496
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BCX56-10,115
Manufacturer	Nexperia USA Inc.
Catalog	Transistors (BJT) - Single
Description	TRANS NPN 80V 1A SOT89
Datasheet	BCX56-10,115 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Status	Active
Transistor Polarity	NPN
Maximum Current Collector	1A
VCEO Maximum Collector-Emitter Breakdown Voltage	80V
Max Vce (sat)	500mV @ 50mA, 500mA
Collector Cut-off Current(Max)	100nA (ICBO)
Typical Gain (hFE) (Min)	63 @ 150mA, 2V
Maximum Power Dissipation	1.25W
Frequency - Transition	180MHz
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOT-89-3
Win Source Part Number	1022814-BCX56-10,115
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Industrial, Power Management, Automotive
Ultra Librarian 3D Model	Ultra Librarian BCX56-10,115 CAD Model

Alternative Products

Description

The BCX56-10,115 NPN transistor from Nexperia USA Inc. is a device that is designed for discrete semiconductor applications.

Mounting: SMD (SMT)
Case/Package: SOT-89-3
Maximum Collector Current: 1A
Maximum Collector-Emitter Breakdown Voltage: 80V
Maximum Vce (sat): 500mV @ 50mA, 500mA
Collector Cut-off Current (Max): 100nA (ICBO)
Typical Gain (hFE) (Min): 63 @ 150mA, 2V
Maximum Power Dissipation: 1.25W
Supply and Demand Status: Limited
