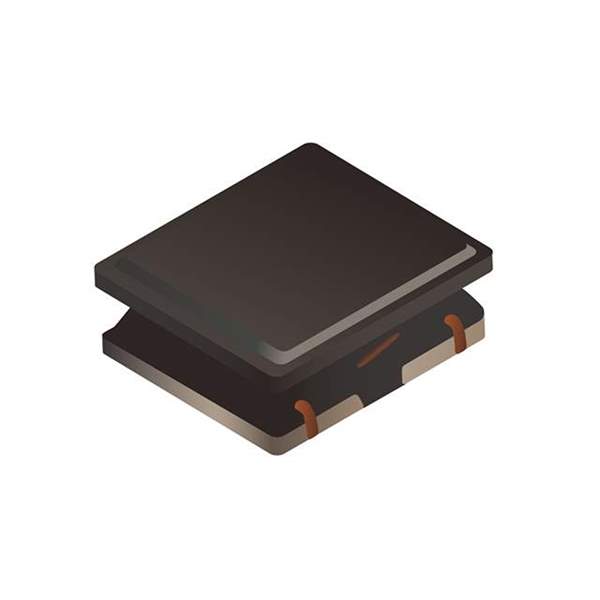

SRN2510F-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRN2510F-1R0M

Part No SRN2510F-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2510F-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2510F
Package Tape & Reel
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 4.9A
Shielding Semi-Shielded
DC Resistance (DCR) 53mOhm Max
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN2510F
Other Names SRN2510F-1R0MDKR,SRN2510F-1R0MCT,SRN2510F-1R0MTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274407-SRN2510F-1R0M
Ultra Librarian 3D Model Ultra Librarian SRN2510F-1R0M CAD Model

Description

The Bourns Inc SRN2510F-1R0M is a high-quality fixed inductor that is suitable for use in various electrical and electronic applications.

  • Series: SRN2510F
  • Shielding: Semi-shielded
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Height: 0.039 inches (Max)
  • Standard Package: 2,000
  • Mounting: SMD (SMT)
  • Material: Metal
  • Self-Resonant Frequency: 60MHz
  • DC Resistance: 53mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.098 inches L x 0.079 inches W
  • ECCN: EAR99
  • REACH: Unaffected
  • Current Rating: 3.5 A
