Same model may have multiple batches, images only for reference.

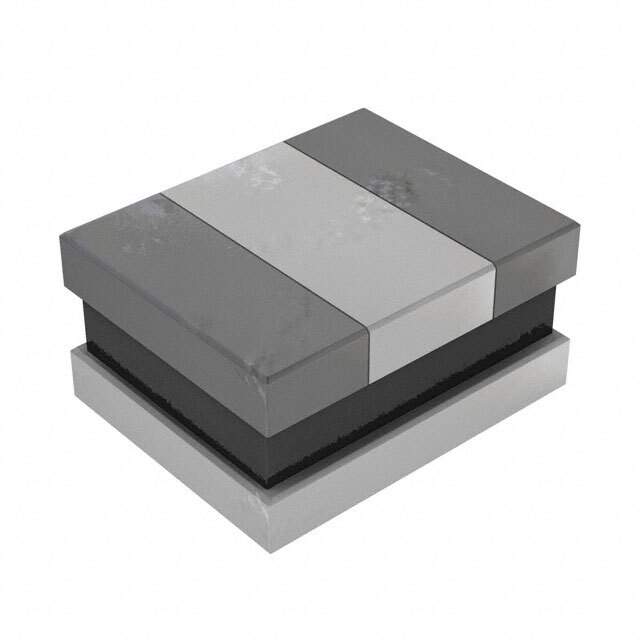

SRN2512-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRN2512-1R0M

Part No SRN2512-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2512-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2512
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 3.9A
Shielding Semi-Shielded
DC Resistance (DCR) 57mOhm Max
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 120MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN2512
Other Names SRN2512-1R0MTR,SRN2512-1R0MCT,SRN2512-1R0MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274401-SRN2512-1R0M
Ultra Librarian 3D Model Ultra Librarian SRN2512-1R0M CAD Model

Description

The SRN2512-1R0M is a semi-shielded drum core inductor with a wirewound type.

  • Package: Tape and reel
  • Package/Case: 1008 (2520 Metric)
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 10 @ 1MHz
  • Frequency Self-Resonant: 120MHz
  • DC Resistance (DCR): 57mOhm Max
  • Height Seated (Max): 0.047" (1.20mm)
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 3.5 A
