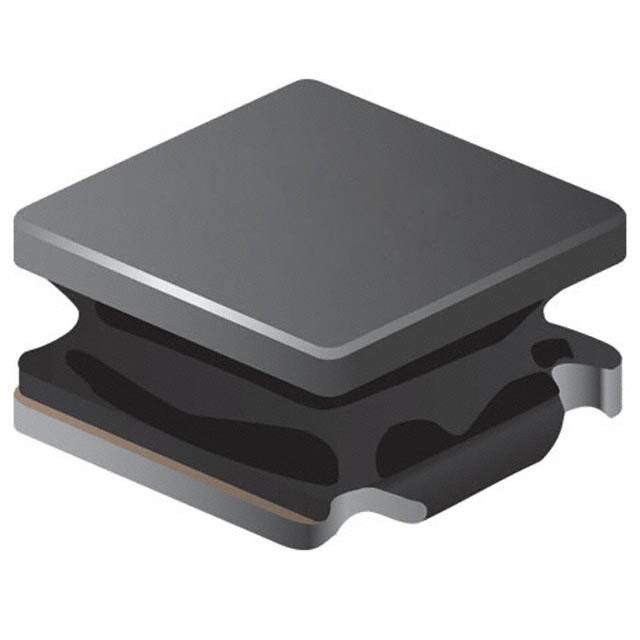

Same model may have multiple batches, images only for reference.

SRN3015-150M

Name: SRN3015-150M
Brand: Bourns Inc.
SKU: 1274377
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRN3015-150M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRN3015-150M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRN3015
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	800 mA
Current - Saturation (Isat)	680mA
Shielding	Semi-Shielded
DC Resistance (DCR)	422mOhm Max
Q @ Freq	17 @ 2.52MHz
Frequency - Self Resonant	33MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.059" (1.50mm)
Base Product Number	SRN3015
Other Names	SRN3015-150MDKR,SRN3015-150MTR,SRN3015-150MCT,SRN3015150M
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274377-SRN3015-150M
Ultra Librarian 3D Model	Ultra Librarian SRN3015-150M CAD Model

Alternative Products

Description

The SRN3015 series inductor from Bourns Inc. is a semi-shielded, drum core, wirewound inductor with an inductance of 15 µH, a tolerance of ±20%, and a DC resistance of 422mOhm max.

Current Rating: 800 mA
Saturation Current: 680mA
Package Dimensions: 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height Seated (max): 0.059" (1.50mm)
Material: Ferrite
Q @ Freq: 17 @ 2.52MHz
Frequency of Self-Resonant: 33MHz
Operating Temperature: -40°C to 125°C
Other Names: SRN3015-150MDKR, SRN3015-150MTR, SRN3015-150MCT, and SRN3015150M
