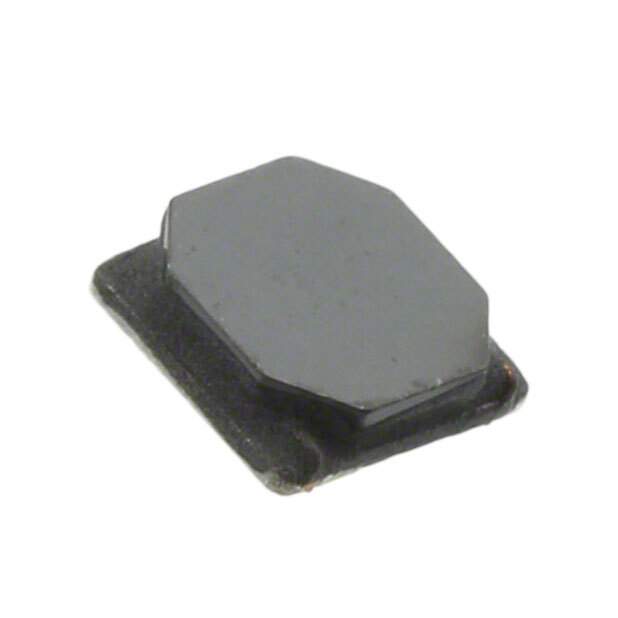

SRN4012T-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRN4012T-4R7M

Part No SRN4012T-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4012T-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4012T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 1.2A
Shielding Semi-Shielded
DC Resistance (DCR) 95mOhm
Q @ Freq 6 @ 100kHz
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN4012T
Other Names SRN4012T-4R7M-CT,SRN4012T-4R7M-TR,SRN4012T-4R7M-DKR
Standard Package 4,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274353-SRN4012T-4R7M
Ultra Librarian 3D Model Ultra Librarian SRN4012T-4R7M CAD Model

Description

The Bourns Inc. SRN4012T-4R7M is a fixed inductor that belongs to the SRN4012T series.

  • Series: SRN4012T
  • Core Type: Drum Core, Wirewound
  • Shielding: Semi-Shielded
  • Package: Non-Standard
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Height - Seated (max): 0.047" (1.20mm)
  • Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • DC Resistance (DCR): 95mOhm
  • Current Rating (amps): 1.5 A
  • RoHS Compliant: No
  • REACH: Unaffected
