Same model may have multiple batches, images only for reference.

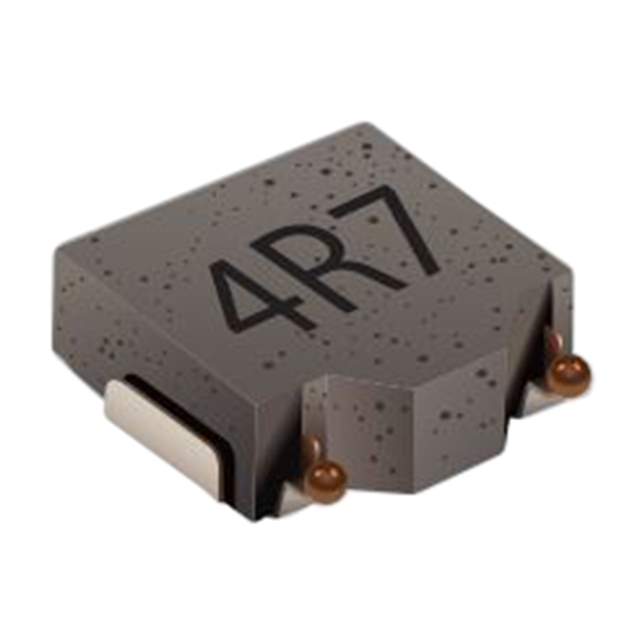

SRP0420-4R7K Real Image
Same model may have multiple batches, images only for reference.

SRP0420-4R7K

Part No SRP0420-4R7K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0420
Package Tape & Reel
Material - Core Metal
Inductance 4.7 µH
Tolerance ±10%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 4.6A
Shielding Shielded
DC Resistance (DCR) 91mOhm Max
Q @ Freq 37 @ 7.96MHz
Frequency - Self Resonant 24MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.079" (2.00mm)
Other Names 118-SRP0420-4R7KCT,118-SRP0420-4R7KDKR,118-SRP0420-4R7KTR
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274212-SRP0420-4R7K
Ultra Librarian 3D Model Ultra Librarian SRP0420-4R7K CAD Model

Description

The Bourns Inc. SRP0420-4R7K is a shielded fixed inductor.

  • Inductance: 4.7 µH
  • Tolerance: ±10%
  • Q value: 37 @ 7.96MHz
  • Self-Resonant Frequency: 24MHz
  • DC Resistance (DCR): 91mOhm Max
  • Current Rating: 3.1A
  • Material: Metal core
  • Mounting: Surface mount technology (SMT)
  • Packaging: Tape & reel
  • ECCN: EAR99
  • MSL level: 1 (unlimited)
