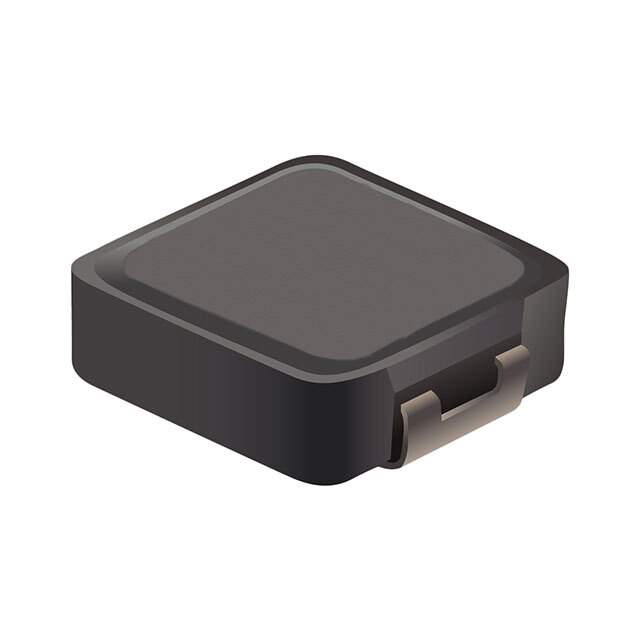

SRP1038C-R10Y Real Image
Same model may have multiple batches, images only for reference.

SRP1038C-R10Y

Part No SRP1038C-R10Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 100 nH
Tolerance ±30%
Current Rating (Amps) 53 A
Current - Saturation (Isat) 85A
Shielding Shielded
DC Resistance (DCR) 0.38mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 215MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names SRP1038C-R10YCT,SRP1038C-R10YDKR,SRP1038C-R10YTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274152-SRP1038C-R10Y
Ultra Librarian 3D Model Ultra Librarian SRP1038C-R10Y CAD Model

Description

The SRP1038C series of fixed inductors from Bourns Inc. is designed for use in a variety of electronic applications.

  • Inductance: 100 nH
  • Current Rating: 53A
  • DC Resistance (DCR): 0.38mOhm Max
  • Q @ Freq: 10 @ 100kHz
  • Series: SRP1038C
  • Shielding: Shielded
  • Type: Drum Core, Wirewound
  • Temperature Range: -40°C to 125°C
  • Package/Case: Nonstandard
  • Mounting Type: SMD (SMT)
