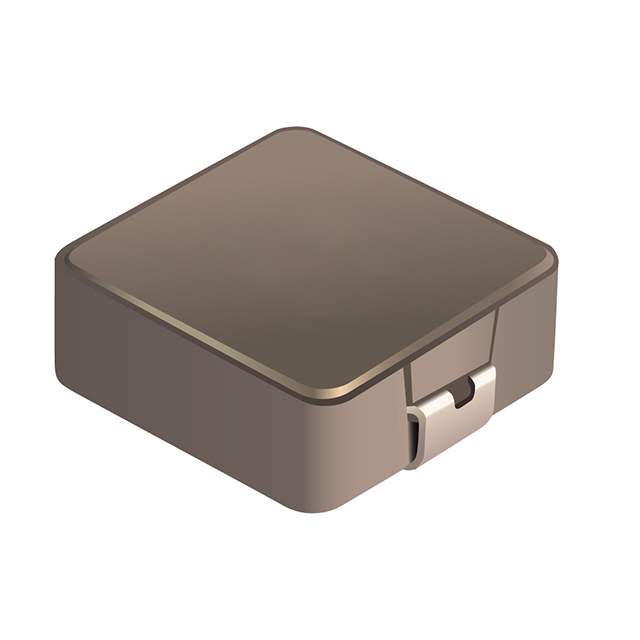

SRP1040VA-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRP1040VA-5R6M

Part No SRP1040VA-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1040VA-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040VA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 12 A
Current - Saturation (Isat) 13A
Shielding Shielded
DC Resistance (DCR) 17.5mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 14MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names 118-SRP1040VA-5R6MTR,118-SRP1040VA-5R6MDKR,118-SRP1040VA-5R6MCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274125-SRP1040VA-5R6M
Ultra Librarian 3D Model Ultra Librarian SRP1040VA-5R6M CAD Model

Description

The Bourns Inc. SRP1040VA-5R6M is a fixed inductor used in inductors, coils, chokes.

  • Type: Drum core and wirewound
  • Shielding: Shielded
  • Rating: AEC-Q200
  • Tolerance: ±20%
  • Q @ Freq: 15 @ 100kHz
  • Frequency-Self Resonant: 14MHz
  • DC Resistance (DCR): 17.5mOhm max
  • Current Rating: 12 A
  • Height-Seated: 0.157" (4.00mm)
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • Temperature Range: -55°C ~ 180°C
