Same model may have multiple batches, images only for reference.

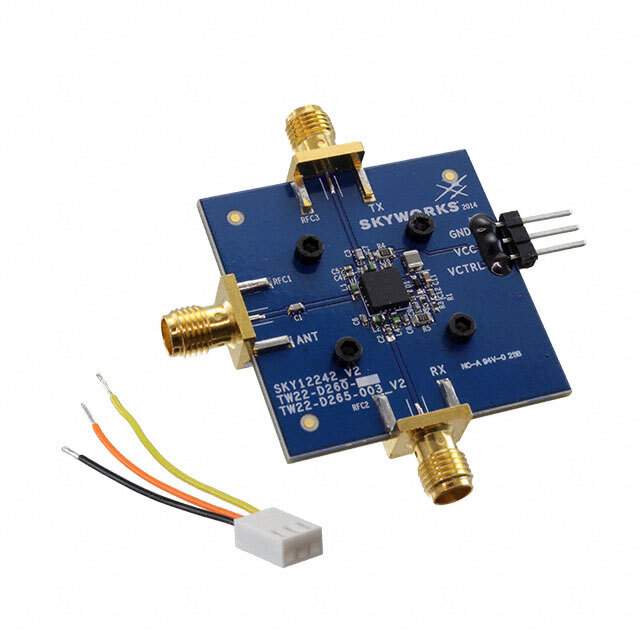

SKY12242-492LF-EVB Real Image
Same model may have multiple batches, images only for reference.

SKY12242-492LF-EVB

Part No SKY12242-492LF-EVB
Manufacturer Skyworks Solutions Inc.
Catalog RF Evaluation and Development Kits, Boards
Description EVALUATION BOARD/KIT / SKY12242-492LF series Switch, SPDT Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Skyworks Solutions Inc.
Package Box
Type Switch, SPDT
Frequency 1.8GHz ~ 3GHz
For Use With/Related Products SKY12242-492LF
Supplied Contents Board(s)
Base Product Number SKY12242
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names 863-2048
Standard Package 1
Win Source Part Number 1024028-SKY12242-492LF-EVB
Ultra Librarian 3D Model Ultra Librarian SKY12242-492LF-EVB CAD Model

Description

The 1024028-SKY12242-492LF-EVB is a switch, SPDT type used in RF evaluation and development kits and boards.

  • Type: Switch, SPDT
  • Frequency Range: 1.8GHz ~ 3GHz
  • Package: Box
  • Supplied Contents: Board(s)
  • Standard Package: 1
  • MSL Level: 1 (unlimited)
  • HTSUS: 8543.70.9860
  • Manufacturer: Skyworks Solutions Inc.
  • Other Names: 863-2048
  • Base Product Number: SKY12242
