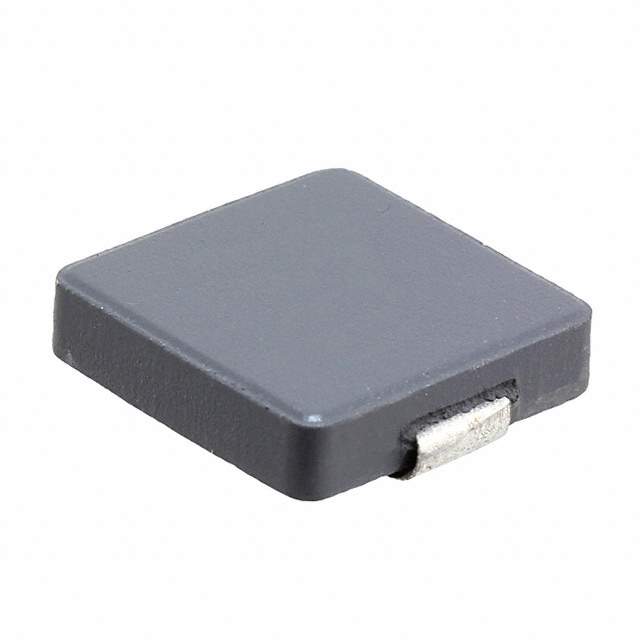

SRP1238A-100M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-100M

Part No SRP1238A-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 14A
Shielding Shielded
DC Resistance (DCR) 34mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 11MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names SRP1238A-100MCT,SRP1238A-100MDKR,SRP1238A-100MTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274092-SRP1238A-100M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-100M CAD Model

Description

The Bourns Inc. SRP1238A-100M is a fixed inductor that is designed to provide high performance and durability.

  • Package: Tape and reel
  • Type: Shielded drum core and wirewound
  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance: 34mOhm
  • Current Rating: 7A
The SRP1238A-100M is a great choice for anyone looking for a reliable electronic component for their project.
