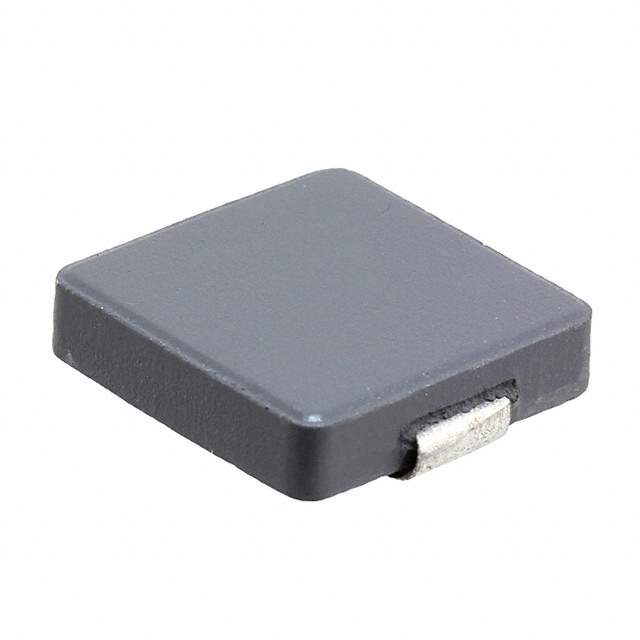

SRP1238A-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-1R0M

Part No SRP1238A-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 24 A
Current - Saturation (Isat) 40A
Shielding Shielded
DC Resistance (DCR) 3.5mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names SRP1238A-1R0MCT,2266-SRP1238A-1R0M,SRP1238A-1R0MTR,SRP1238A-1R0MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274094-SRP1238A-1R0M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-1R0M CAD Model

Description

The SRP1238A-1R0M is a drum core, wirewound inductor designed by Bourns Inc.

  • Shielded: Yes
  • Inductance: 1µH
  • Tolerance: ±20%
  • Q: 15 @ 100kHz
  • Frequency Self-Resonant: 40MHz
  • DC Resistance: 3.5mOhm (Max)
  • Current Rating: 24A
  • Current Saturation: 40A
  • Rated: AEC-Q200
  • Package: Tape and reel
  • Mounting: Surface mount device
  • Material: Carbonyl powder
  • Temperature Range: -40°C to 150°C
  • Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
  • Package: Non-standard
