Same model may have multiple batches, images only for reference.

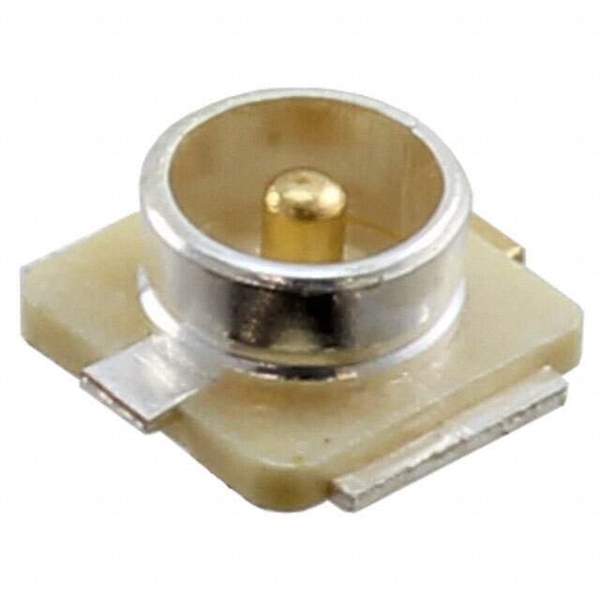

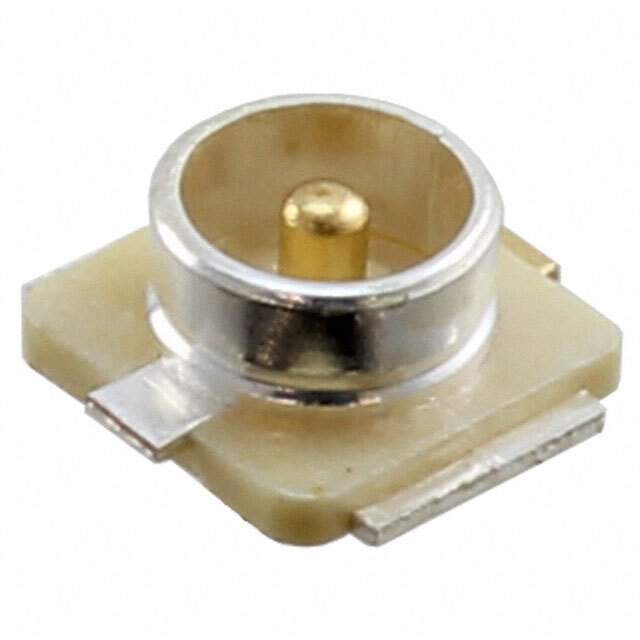

U.FL-R-SMT-1(60) Real Image
Same model may have multiple batches, images only for reference.

U.FL-R-SMT-1(60)

Part No U.FL-R-SMT-1(60)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN UMC RCPT STR 50 OHM SMD
Datasheet
U.FL-R-SMT-1(60) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Style U.FL, Ultra Miniature Coaxial
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Housing Color Beige
Body Material Phosphor Bronze
Body Finish Silver
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C to 90°C
Center Contact Material Brass
Mating Cycles 30
Win Source Part Number 043401-U.FL-R-SMT-1(60)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian U.FL-R-SMT-1(60) CAD Model

Description

The Hirose Electric Co Ltd 043401-U.FL-R-SMT-1(60) is a receptacle connector with male pin that features snap-on fastening and solder contact termination.

  • Type: Ultra miniature coaxial connector
  • Housing Color: Beige
  • Mounting: Surface mount (SMD)
  • Impedance: 50 Ohm
  • Body Material: Phosphor bronze
  • Body Finish: Silver
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Dielectric Material: Liquid crystal polymer (LCP)
  • Operating Temperatures: -40°C to 90°C
  • Maximum Input Frequency: 6GHz
  • Mating Cycle: 30
  • Supply and Demand Status: Balanced
