Same model may have multiple batches, images only for reference.

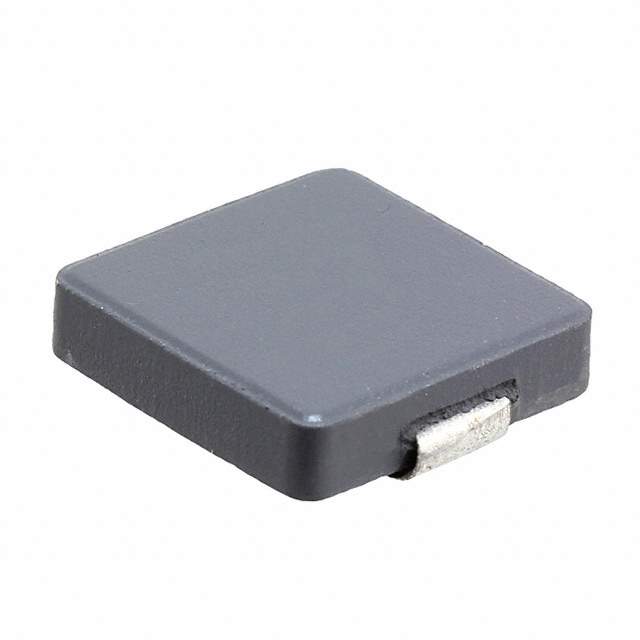

SRP1238A-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-5R6M

Part No SRP1238A-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 9.5 A
Current - Saturation (Isat) 19A
Shielding Shielded
DC Resistance (DCR) 22mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names SRP1238A-5R6MCT,SRP1238A-5R6MDKR,2266-SRP1238A-5R6M,SRP1238A-5R6MTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274084-SRP1238A-5R6M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-5R6M CAD Model

Description

The Bourns Inc. 1274084-SRP1238A-5R6M is a fixed inductor belonging to the SRP1238A series.

  • Type: Shielded drum core, wirewound
  • Inductance: 5.6 µH
  • Tolerance: ±20%
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 22mOhm Max
  • Current Rating: 9.5 A
  • Operating Temperature: -40°C to 150°C
  • Rated: AEC-Q200
  • ECCN: EAR99
  • REACH: Unaffected
