Same model may have multiple batches, images only for reference.

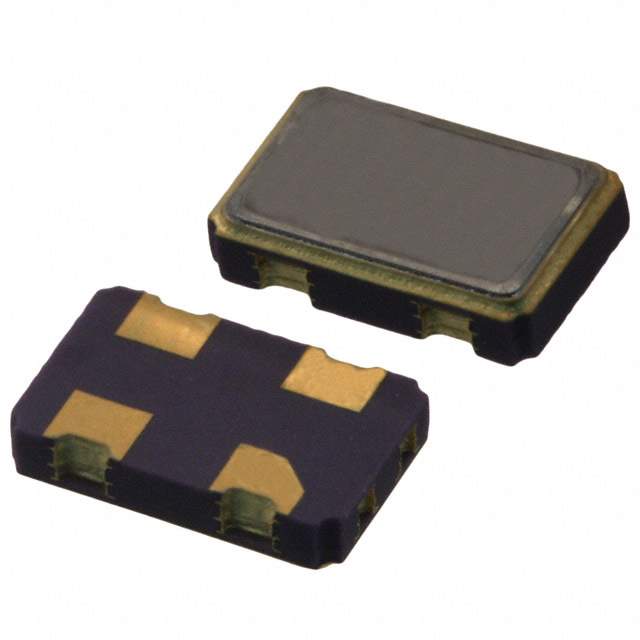

KC5032C100.000C30E00 Real Image
Same model may have multiple batches, images only for reference.

KC5032C100.000C30E00

Part No KC5032C100.000C30E00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ CMOS SMD / 100 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr KYOCERA AVX
Series KC5032C-C3
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -10°C ~ 70°C
Current - Supply (Max) 45mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 478-4797-6-ND,478-4797-6,478-KC5032C100.000C30E00,478-4797-2,478-4797-1,478-4797-2-ND,478-4797-1-ND,KC5032C100.000C30EZU,KC5032C100000C30E00
Standard Package 1,000
Win Source Part Number 1199070-KC5032C100.000C30E00
Ultra Librarian 3D Model Ultra Librarian KC5032C100.000C30E00 CAD Model

Description

The KC5032C-C3 series from KYOCERA AVX is a type of oscillator that comes in a tape and reel package.

  • Frequency: 100 MHz
  • Voltage Supply: 3.3V
  • Mounting: SMD (SMT)
  • Frequency Stability: ±50ppm
  • Current Supply (Max): 45mA
  • Package/Case Size: 4-SMD, No Lead
  • Temperature Range: -10°C to 70°C
  • Dimensions: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Ideal for: Devices Requiring Enable/Disable Function
