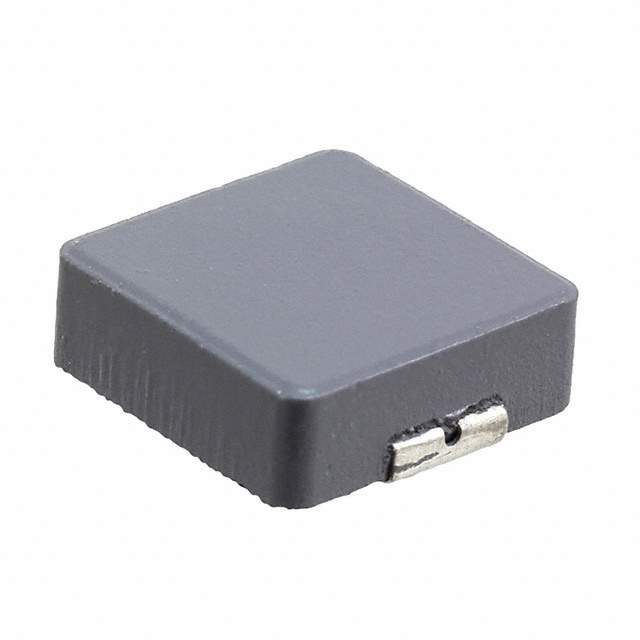

Same model may have multiple batches, images only for reference.

SRP1245A-180M

Name: SRP1245A-180M
Brand: Bourns Inc.
SKU: 1274076
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1245A-180M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1245A-180M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1245A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	18 µH
Tolerance	±20%
Current Rating (Amps)	7.5 A
Current - Saturation (Isat)	11A
Shielding	Shielded
DC Resistance (DCR)	45mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	7MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)	0.197" (5.00mm)
Base Product Number	SRP1245A
Other Names	SRP1245A-180MDKR,SRP1245A-180MCT,SRP1245A-180MTR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274076-SRP1245A-180M
Ultra Librarian 3D Model	Ultra Librarian SRP1245A-180M CAD Model

Alternative Products

Description

The Bourns SRP1245A-180M is a shielded fixed inductor that has a tape and reel package.

Inductance: 18 µH
Tolerance: ±20%
Height: 0.197 inches (5.00mm)
Dimension: 0.531 inches L x 0.492 inches W (13.50mm x 12.50mm)
Package: Tape and reel (500 pieces)
Supplier Device Package: Non-standard
Core Material: Carbonyl powder
DC Resistance (DCR): 45mOhm Max
Current Rating: 7.5 A
Temperature Range: -40°C to 150°C

The Bourns SRP1245A-180M is a reliable and high-quality inductor that can be used in various applications.
