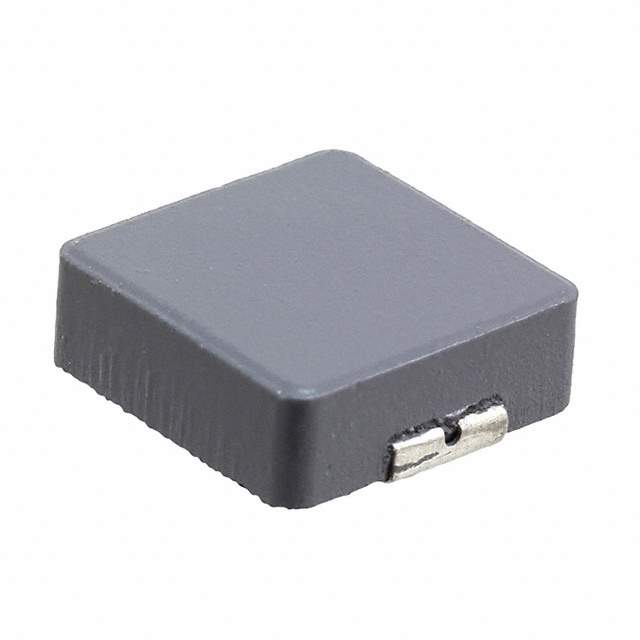

Same model may have multiple batches, images only for reference.

SRP1245A-1R8M

Name: SRP1245A-1R8M
Brand: Bourns Inc.
SKU: 1274077
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SRP1245A-1R8M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1245A-1R8M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1245A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	1.8 µH
Tolerance	±20%
Current Rating (Amps)	21 A
Current - Saturation (Isat)	40A
Shielding	Shielded
DC Resistance (DCR)	4.9mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	27MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)	0.197" (5.00mm)
Base Product Number	SRP1245A
Other Names	SRP1245A-1R8MTR,SRP1245A-1R8MCT,SRP1245A-1R8MDKR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274077-SRP1245A-1R8M
Ultra Librarian 3D Model	Ultra Librarian SRP1245A-1R8M CAD Model

Alternative Products

Description

The SRP1245A-1R8M inductor from Bourns Inc. is a shielded, wirewound drum core type inductor.

Inductance: 1.8 µH
Tolerance: ±20%
DC Resistance: 4.9 mOhm (Max)
Height: 0.197" (5.00 mm)
Package: Tape and reel
Core Material: Carbonyl powder
Q Value: 20 @ 100 kHz
Current Rating: 21 A
Current Saturation Rating: 40 A
Temperature Range: -40°C to 150°C
REACH: Unaffected
ECCN: EAR99
HTSUS: 8504.50.4000
Package Dimensions: 0.531" L x 0.492" W (13.50mm x 12.50mm)
Series: SRP1245A
Standard Package Quantity: 500
