Same model may have multiple batches, images only for reference.

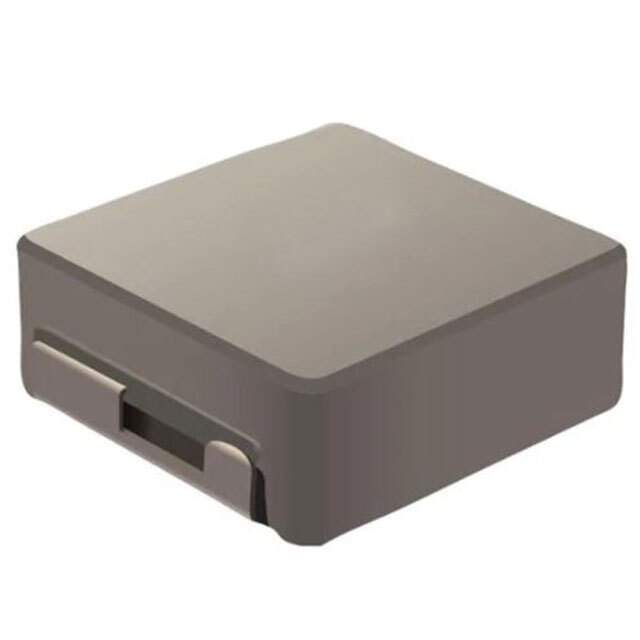

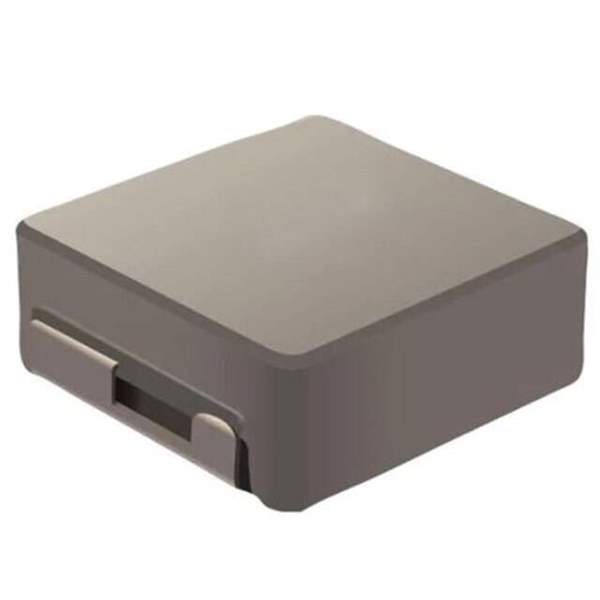

SRP1770C-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRP1770C-4R7M

Part No SRP1770C-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1770C-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1770C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 26 A
Current - Saturation (Isat) 37A
Shielding Shielded
DC Resistance (DCR) 5.5mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.701" L x 0.665" W (17.80mm x 16.90mm)
Height - Seated (Max) 0.276" (7.00mm)
Other Names SRP1770C-4R7MTR,SRP1770C-4R7MCT,SRP1770C-4R7MDKR
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274015-SRP1770C-4R7M
Ultra Librarian 3D Model Ultra Librarian SRP1770C-4R7M CAD Model

Description

The Bourns Inc. SRP1770C-4R7M is a fixed inductor designed for use in electronic devices.

  • Design: Shielded drum core wirewound
  • Inductance: 4.7 µH
  • Current Rating: 26A
  • Maximum DC Resistance: 5.5mOhm
  • Operating Temperature: -40°C to 125°C
  • Frequency Self-Resonant: 17MHz
  • Package/Case: Non-standard
  • Mounting: SMD (SMT)
